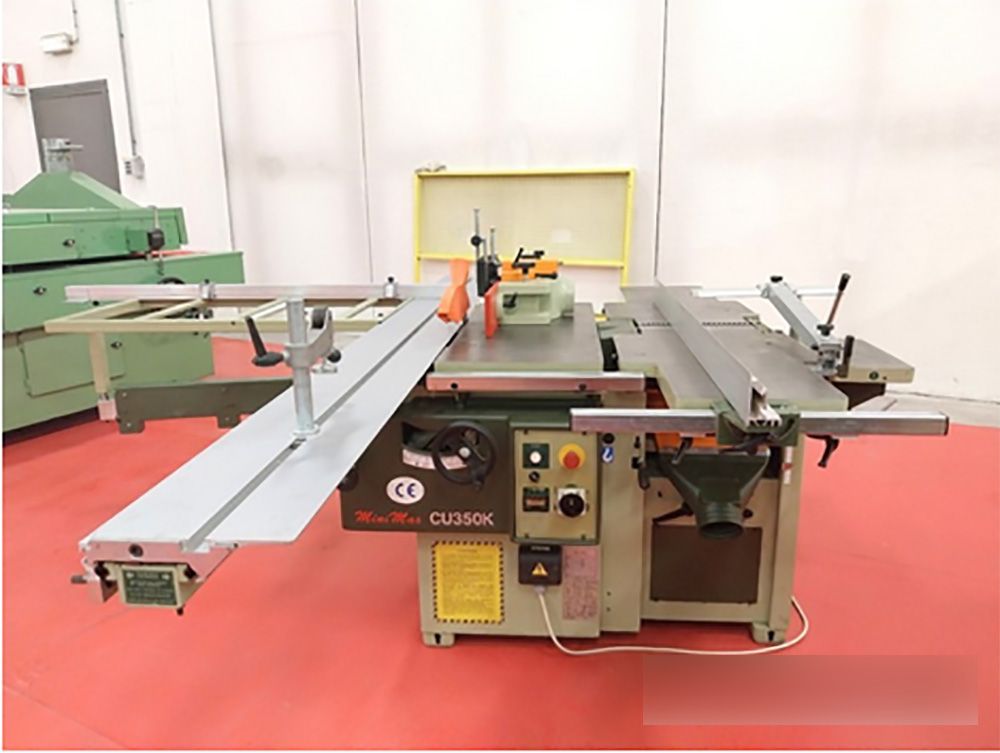

SCM CU 350 K

Universal 7-works combined machine for joinery, furniture, custom-made furnishings, doors,
wooden window frames , panels and various – CE Standard

Technical data:
Aluminium carriage sliding on hardened and ground steel guides 3000 mm

Surface planer:
Surface planer width 350 mm
Total table length 1800 mm
Spindle speed 4850 rpm
Guide incliantion 90–45°
N° 3 cutters

Thickness planer:
Table dimensions 600 x 350 mm
Min/max working height 3–230 mm
Max removal 5 mm

Spindle moulder:
Spindle length 136 mm
Rotation speed 1400/3500/6000/8000 rpm
Max tool diameter 180 mm
Cover with vertical clamps

Circular saw:
Aluminium carriage length 3000 mm
Tilting blade 0–45°
Max blade diameter 300 mm
Spindle speed rpm 4000
Cutting width at parallel guide 900 mm
Squaring frame fitted with telescopic guide with 2 adjustable reference stops
Protective cover

Mortising machine:
Table dimensions 430 x 220 mm
Workpiece clamping presser
Vertical stroke 100 mm
Transversal stroke 155 mm
Longitudinal stroke 115 mm

N° 3 motors 3 Hp each
Suction inlets diameter 120 mm

Overall dimensions of mounted machine mm 3000 x 2800 x 1150 h
Overall dimensions for transport mm 3000 x 1400 x 1300 h
Weight kg 690
