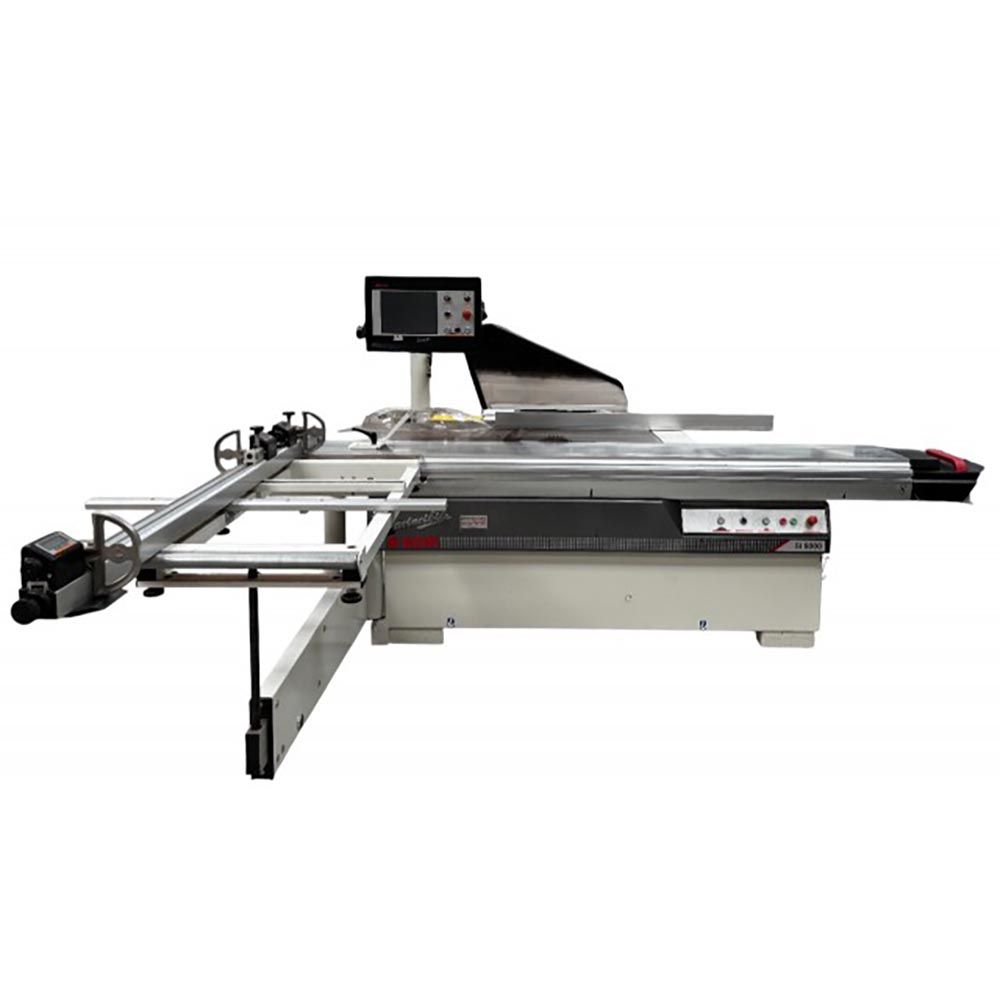

SCM INVINCIBILE SI6000

SECTION SAW, SCORTING BLADE, LARGE TABLE & 3.20M FLUSH-TO-BLADE CARRIAGE
Blade up-and-down, tilting, and side guide adjustment are digitized and controlled on a support arm

MAKING CAPACITIES:
- Cutting length (useful travel of the carriage) 3200 mm
- Maximum cutting width with rip fence (ripping) 1500 mm
- Squaring cutting capacity (on carriage) 30 x 3200 mm
- Tilting blades: 90 - 45°
Maximum cutting height at 90°: 130 mm & at 45°: 92 mm
- Blade speeds: 3000 / 4000 / 5000 rpm
- Scoring saw speed: 8500 rpm

COMPOSITION:
- Blade guard suspended on a bracket
- ​​Saw blade diameter: 300 to 400 mm, bore diameter: 30 mm
- Scoring saw blade diameter: 120 mm, bore diameter: 20 mm
- Robust welded frame
- Large main table (WxD): 1250 x 1850 mm
Fixed side table extension (WxD): 800 x 630 mm
Precision electrically adjustable rear fence
Height from floor (working height): 930 mm
- Digital display and control of operations on control panels
- Aluminum carriage sliding on ball bearings, flush with the blade, with handle: 3200 x 360 mm
- Squaring table (Frame 1500 x 600 mm
Intermediate supports in the frame from the trolley: 1 fixed 530 mm, 1 free length 1200 mm
End roller for loading assistance
Adjustable and retractable support
- Graduated, tilting cross ruler, length: 3200 mm
3 reversible digital precision stops

OTHER FEATURES:
- 400V main power supply. Three-phase 50 Hz
- Installed power IN Max 14 A
- Saw motor 5.5 kW
- Scoring motor 0.75 kW
- CE marked, padlockable disconnect switch, mushroom stops
Extraction: Upper inlet Ø 100 mm, lower Ø 120 mm
- Recommended flow rate 1300 m3/h 20 m/s

Transport dimensions (LxWxH): 3200 x 2300 x H. 1770 mm
Weight: 1400 kg
