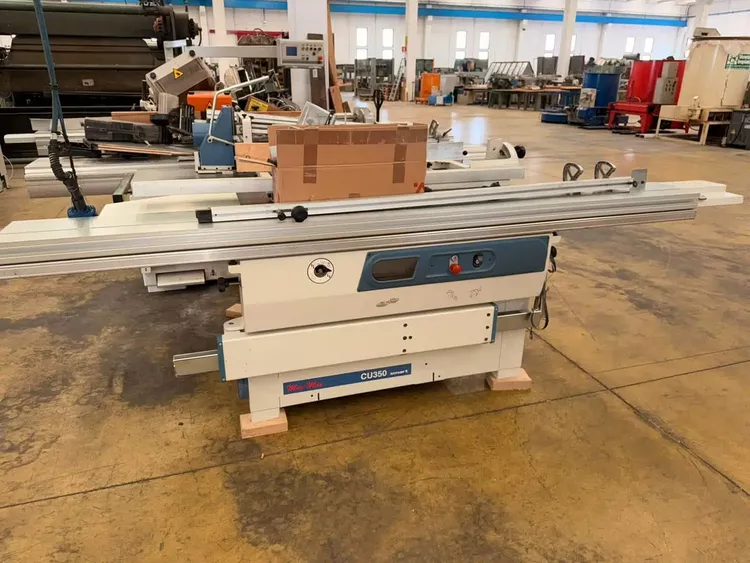

SCM Minimax cu350 smart

Used combined machine, 220 V
2800 mm carriage
The 350 mm Smart universal combined machine is the best investment for artisan carpentry.
The new generation of MiniMax universal combined machines, the "Smart Series," is a truly cutting-edge work center thanks to its technological and innovative solutions.
Versatile machines with features in line with modern work needs, the Smart combined machines guarantee a perfect finish for all types of machining operations.
The convenience and safety for the worker when switching from one machining operation to another has been further improved, allowing for significantly reduced setup times.
Ultimately, high quality standards and improved performance have been achieved at a very affordable price.
They are aimed at artisans and carpentry shops seeking versatility and professional performance.
The technical solutions that distinguish these new combined machines are essentially attributable to:
New concept of aluminum carriages. Available in various strokes: 1600mm (standard), 2250mm*, 2600mm*, 2800mm*.
Main blade diameter of 315mm with scoring blade* installed.
Maximum blade projection 103mm.
Start and stop buttons in all working positions.
Tiltable spindle option on all versions.
Professional guides.
One dedicated to the saw with eccentric locking and micrometric adjustment and one dedicated to surface planing.
Ergonomics and ease of use.
New optional devices.
Ultimately, better performance at a more affordable price.

Technical Specifications ;
Surface Planer
Useful working width of surface tables: 350mm
Total length of surface tables: 1900mm
Number of knives: 3
Plan fence tilts 90°-45°
Thickness Planer
Thickness table dimensions: 775x350mm
Thickness feed speed: 7m/min
Min/max working height: 3/230mm
Circular Saw
Saw/spindle moulder table dimensions: 430x1112mm
Saw blade tilt: 90°-45°
Max. saw blade diameter with scoring blade installed: 315mm
Max. saw blade projection from the table at 90° with a 315mm blade: 103mm
Max. Squaring (optional) 1600mm (2250, 2600, 2800)
Cutting width at rip fence 1050mm
Spindle moulder
Useful spindle length 125mm
Mechanical spindle/spindle rotation speeds at 50Hz 1400-3500-6000-8000 rpm
Maximum diameter of tool retracting under table 210mm
Maximum diameter Tenoning tool diameter 275mm
Motor power (3 motors): 4 hp 3kW 50Hz (4.8 hp 3.6kW 60Hz)
Net weight of basic machine: 800kg
Machine dimensions:
Version 1600mm: W=2000mm, D=1400mm, H=900mm
Version 2250mm: W=2400mm, D=1400mm, H=900mm
Version 2600mm: W=2700mm, D=1400mm, H=900mm
Version 2800mm: W=2900mm, D=1400mm, H=900mm
