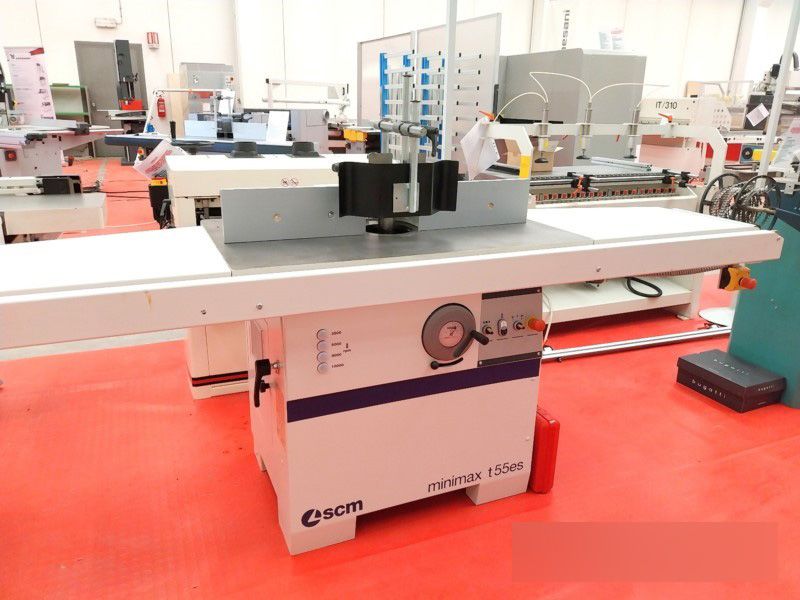

SCM MINIMAX T55 ES

Spindle moulder with long table for joinery, furniture, custom-made furniture, wooden joinery,
doors, timber structures, plastics, composite materials and various – CE Standard

Technical specifications:
Shaft diameter 35 mm
Shaft length 125 mm
Shaft rotation speed rpm 3500/6000/8000/10000
Max tool diameter 240 mm
Motor power 6,6 Hp
Spindle unit adjustment handwheels positioned on the front of the machine
Gravity indicator on the spindle lifting handwheel
Side extensions and telescopic front roller extension for a support of 2500 mm
Spindle rotation reversal
Spindle speed display by LED lights
Adjustable spindle guide
Electrical installation for automatic feed
Extraction hood inlet diameter 120 mm
Overall dimensions mm 2550 x 900 x 1150 h
Weight kg 348
