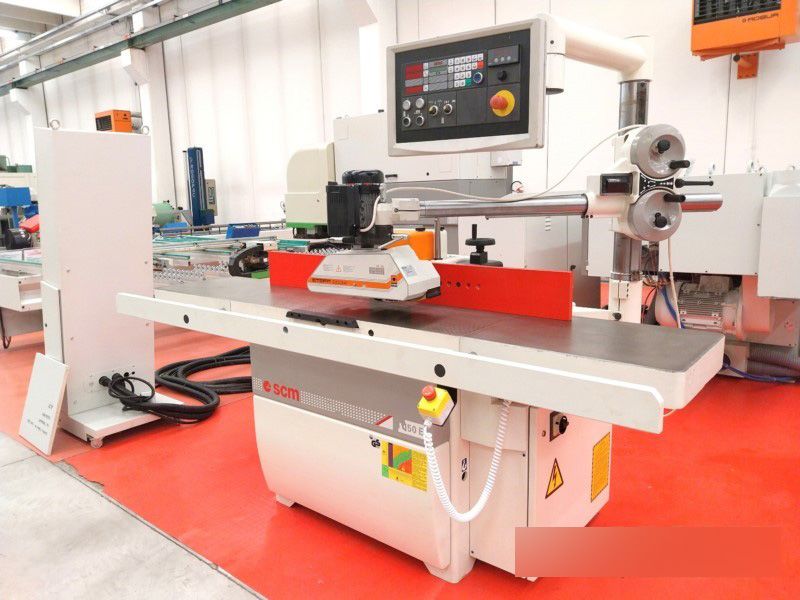

SCM T 150 E

Automatic electronic spindle moulder with tilting spindle, complete with feed, for joinery, furniture,
custom-made furniture, wooden joinery, doors, timber structures, plastics and composite materials – CE Standard

Electronic control for vertical positioning and spindle tilting
Inverter: electronic speed variator with display from 1000 to 10000 rpm
Reversible rotation
Manually adjustable “FAST” sector work table
Guide - router hood with easy release mechanism operated by a crank handle

Technical data:
Work table dimensions 2500 x 800 mm
Removable workpiece support
Work table height from ground 935 mm
Spindle tilting -10° to +45°
Spindle diameter 40 mm
Max profiling tool diameter 250 mm
Max tenoning tool diameter 300 mm
Main motor 7,5 Hp
Feed roller support device with manual vertical and horizontal movement
3-roller automatic feed MAGGI
N° 2 suction inlets diameter 120 mm
Overall dimensions mm 2500 x 1350 x 1900 m
Weight kg 1000
