SCM NOVA SI 400 Ep
Ref :
2749368-15-AW
Condition :
Used
Manufacturer :
SCM
Model :
NOVA SI 400 Ep
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)

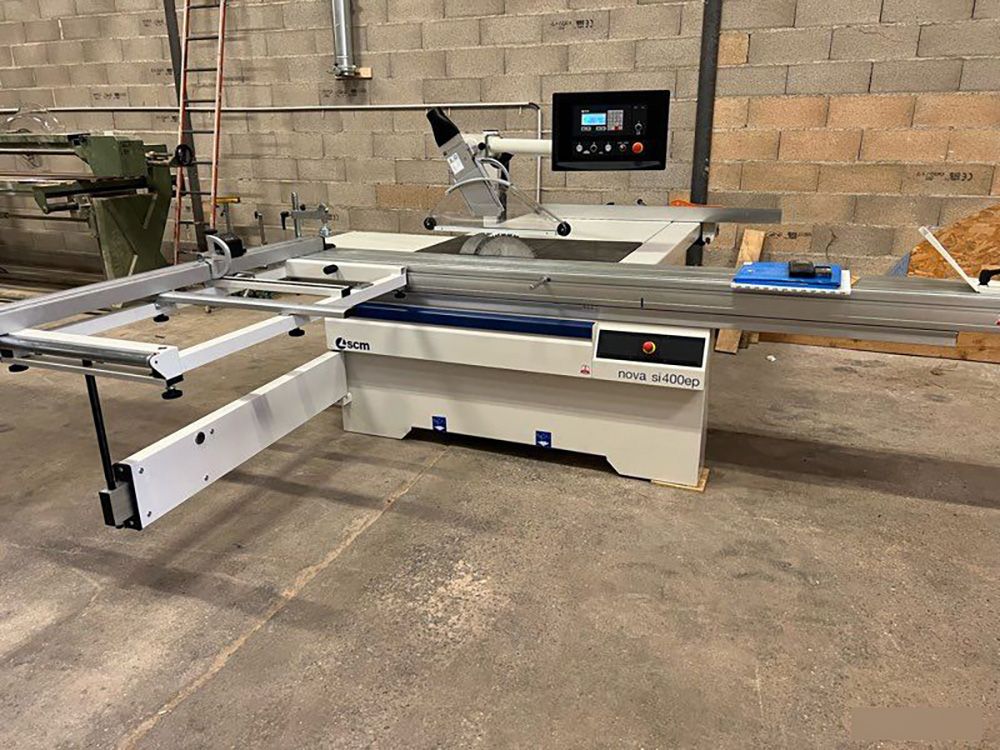

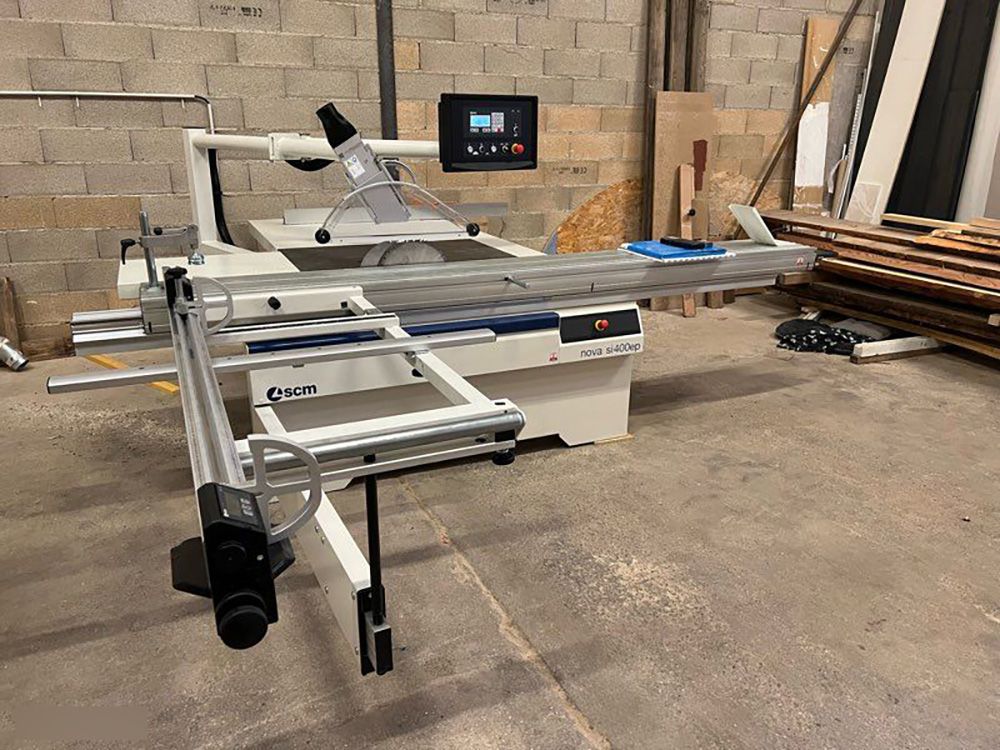

Digital 3-axis sliding table saw with overhead control panel and end-of-carriage start.
Maximum cutting height at 90 degrees: 140 mm with 400 mm blade.
Maximum cutting height at 45 degrees: 97 mm with 400 mm blade.
Blade tilt: 45 degrees.
Blade lifting and tilting: automatically programmed.
Main blade rotation speed: 3000 - 4000 - 5000 rpm.
Scoring blade rotation speed: 8500 rpm.
Blade motor power in kW: 9 (or 12 hp).
Squaring capacity with carriage: 3200 mm.
Cutting width at the rip fence: 1500 mm.
Suction inlet diameter: 120 mm on the frame and 80 mm on the suspended guard.
READY 3 UP PLUS version.
Purchased new, built in 2023.
