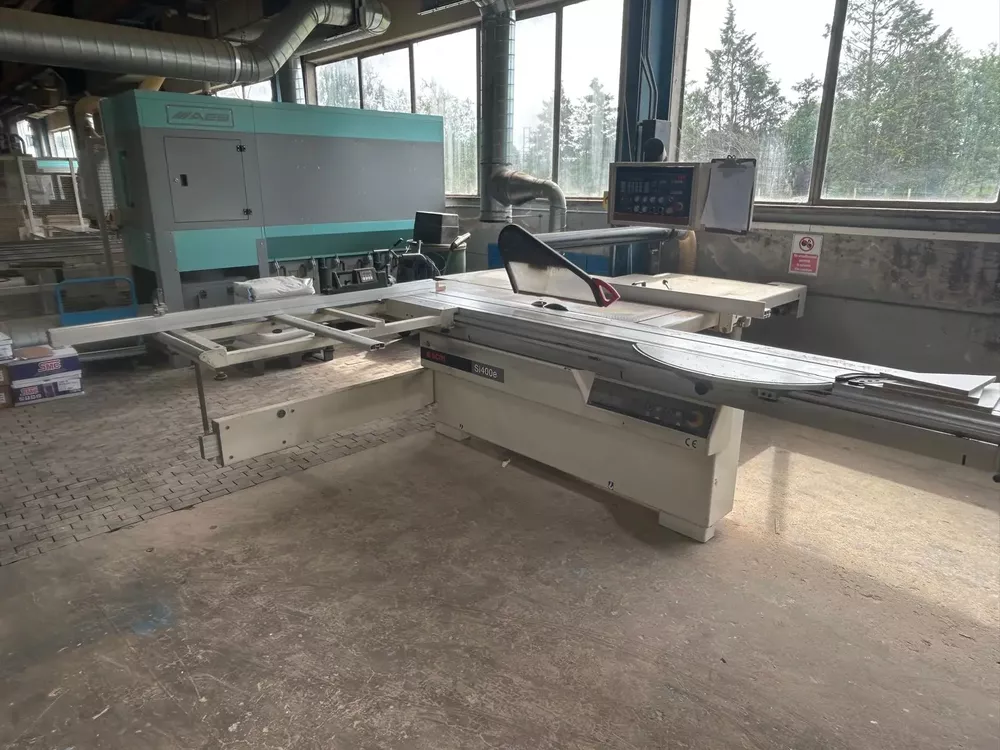

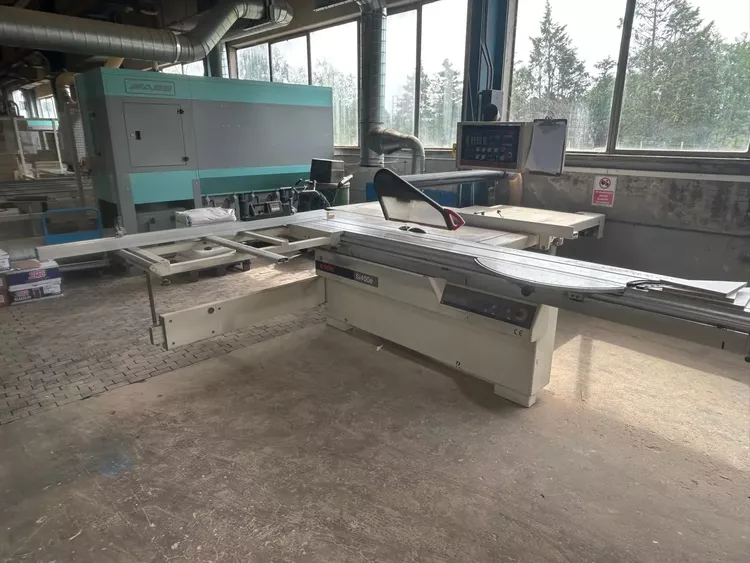

SCM Nova SI 400

Sliding Table Saw
Feature :
Max. Saw Blade Diameter 400 mm
Max. Blade Projection (90°/45°) 140 / 97 mm
Squaring Stroke (Sliding Table) 3 200 × 3 200 mm
Rip Fence Capacity 1 270 mm (digital read-out fence)
Blade Tilt Range 0 – 45 °
Main Motor 7 kW (≈ 9 HP), three-phase
Scoring Motor 1 kW (≈ 1.2 HP)
Sliding Table Carriage 3 200 mm anodised-aluminium with hardened-steel guides
Stop/Start on Carriage Integrated buttons on carriage for quick control
Digital Rip Fence Read-Out LCD display on fence for precise positioning
Powered Blade Movements Electrically-driven blade raising/lowering & tilting
Control Panel Overhead electronic control panel (EP version) with ready-3-UP interface
Extraction Outlet(s) Available on request

Notes & Options:
Programmable vs Manual: Available in manual or CNC-programmed versions for batch cutting.
“Quick Lock” Fence: Rapid-release fence with minimal setup time and self-adjusting stops (“Compex” device)
Scoring Blade: Split-scoring unit for chip-free cuts, capacity up to 120 mm diameter.
Optional Extras: Mitre fences, twin-pusher configuration, powered crosscut fence, on-board optimization software.
Electrical Supply: Standard 400 V three-phase
