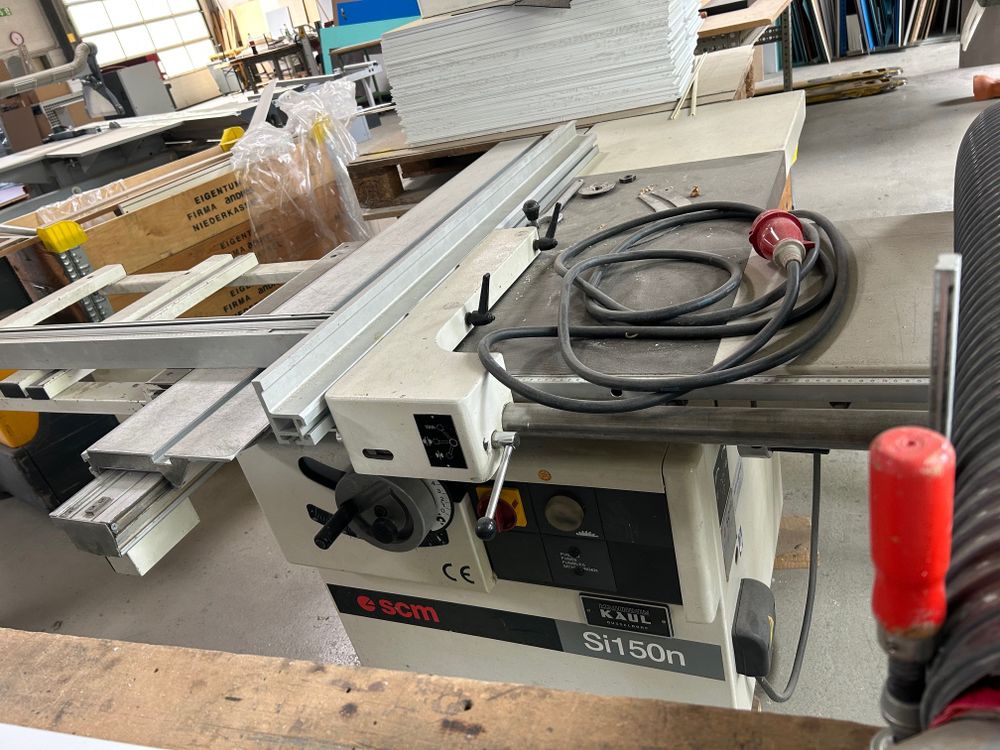

SCM SI 150 N

Circular saw Used machine
Special SCM guide system for the saw carriage. The arc-shaped guide between the balls and the guide rails
and the hardened contact surfaces ensure exceptional and consistent precision.
The scoring unit can be easily swung in and out from the outside; a special plate enables precise positioning.
The fence is extremely robust and suitable for both rip cuts and angle cuts; quick return to the starting position.
The precise folding stops allow for direct reading of the dimensions along the entire length.

Table dimensions: 830 x 1200 mm
Saw carriage: 1500 x 290 mm
Cutting length: 1500 mm
Saw blade tilt: 45°
Max. diameter of main saw blade: 300 mm
Max. diameter of scoring saw blade: 100 mm
Max. cutting height at 90°: 95 mm
Max. cutting height at 45°: 67 mm
Saw blade speed: 4000 rpm
Scoring saw speed: 8000 rpm
Cutting width with parallel guide: 1000 mm
Dust extraction port diameter: 100 mm
Motor: 4 kW
Weight: 425 kg
