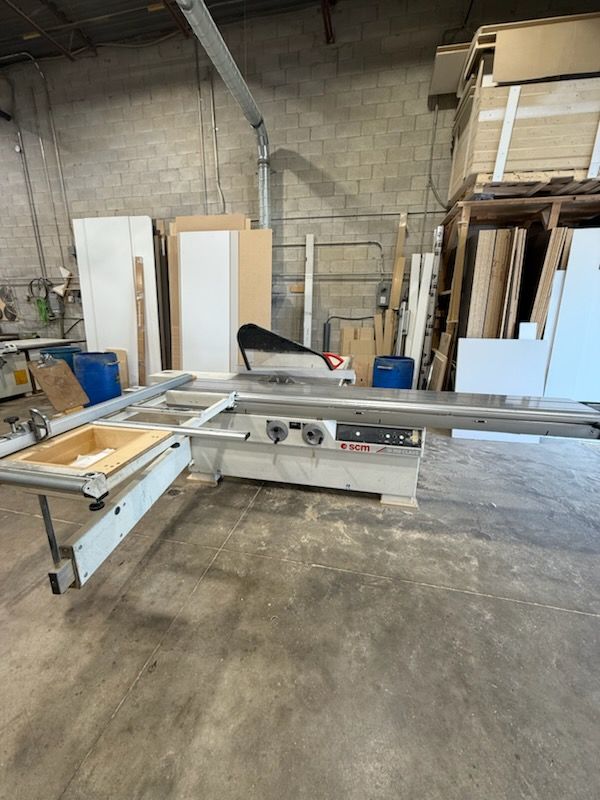

SCM SI 350 Class

Voltage 600V / 3ph / 60 Hz
Condition Rating Very Good
Main motor horsepower: 5.5 HP
Scoring motor horsepower: 1 HP
Fixed table size: 41” x 25”
Height of worktable: 34.5”
Rip capacity: 1270 mm (51”)
Max. length of crosscut with scoring: 3200 mm (126”)
Main blade diameter: 350 mm
Scoring blade diameter: 120 mm
Arbor speed – main/scoring: 4,000/8,000 RPM
Arbor tilt: 0 - 45 degrees
Depth of cut – 0 degrees/45 degrees: 118 mm/81 mm (4.6”/3.1”)
2-Position table lock mechanism; manual raise, lower & tilt.
Mechanical digital tilt indicator.
Pivoting blade guard with dust outlet.
