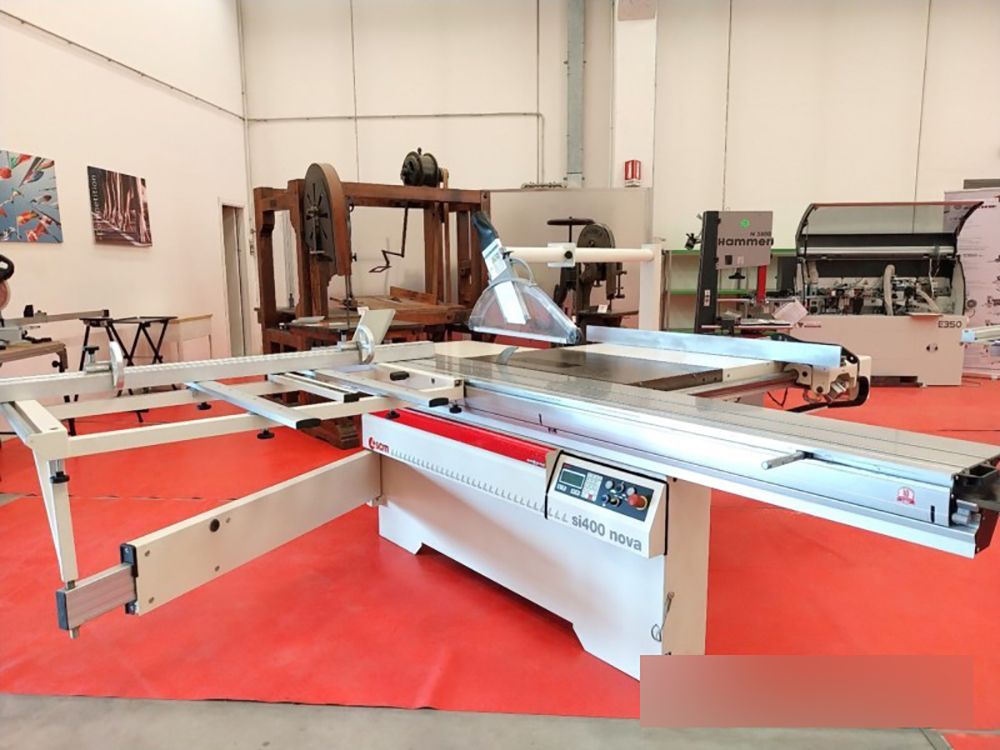

SCM SI 400 EP NOVA

Electronic 3-axis controlled panel saw with scoring unit for panels, furniture, custom-made furniture ,
window and door frames, wooden doors, carpentry, plastics, composite materials and various – CE Standard

Technical data:
Sliding aluminium alloy carriage length 3200 mm
Fixed table dimensions 1040 x 630 mm
Squaring capacity 3200 x 3200 mm
Blade tilt from 90° to 45°
Max blade diameter 400 mm Hole 30
Scoring unit blade diameter 120 mm Hole 30
Max cutting height at 90° 140 mm
Max cutting height at 45° 99 mm
Blade rotation speed 3000/4000/5000 rpm
Scoring blade rotation speed 8500 rpm
Cutting width with parallel guide 1270 mm
Blade motor power 7 Kw
Scoring motor power 0,9 Kw
Suction inlet diameter under the table 120 mm
Suction inlet diameter on the suspended protective hood 80 mm
Table extension
Parallelogram guard
3 controlled axis: blade lifting - blade tilting - parallel guide
Overall dimensions of assembled machine mm 3400 x 3900 x 1600 h
Overall dimensions for transport mm 3400 x 2200 x 1600 h
Weight kg 780
