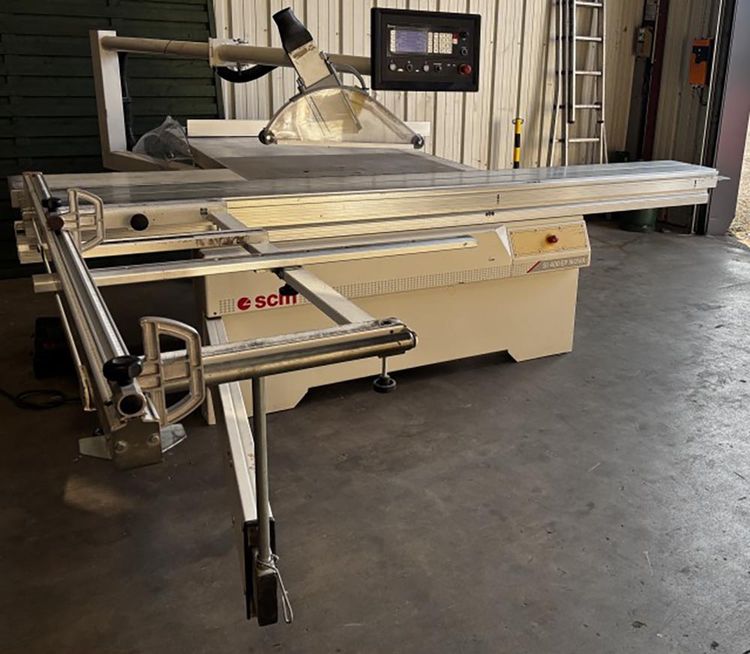

SCM SI 400EP NOVA

SECTION SAW WITH SCORING BLADE & 3.20 M FLUSH-TO-BLADE CARRIAGE
Blade raising and lowering, tilting, and parallel guide adjustment are digitized and controlled on the support.

MAKING CAPACITIES:
- Edging length, carriage travel: 3200 mm
- Max. cutting width at the parallel guide: 1500 mm
- Squaring capacity (end cutting, crosscutting): 3500 mm
- Blades tilt 90° - 45°
Max. cutting height at 90°: 130 mm & at 45°: 92 mm
- Blade speeds: 3000/4000/5000 rpm
- Scoring saw speed: 8500 rpm

COMPOSITION:
- Mechanically welded frame
- Worktop height: 90 cm
Main table (WxD): 1800 x 1300 mm
Left side table extension (WxD): 830 x 320 mm
- Blade guard suspended on a bracket
- ​​Saw blade max. Ø400 mm, bore Ø30 mm
- Scoring saw blade Ø120 mm, bore Ø20 mm
- Digital display of height, tilt, and rotation speed on the control panel
Blade and digital rip fence control
Rip fence 1500 x 90 mm (h.mm)
- Sliding carriage flush with the blade 3200 x 330 mm, with handle
Squaring table (Side frame) WxD: 1470x540 mm
Telescopic and tilting main scale with 2 reversible stops
Intermediate supports: one in the frame 500 mm from the carriage with angle indication and one free and removable
End roller for loading/unloading assistance

OTHER FEATURES:
- 400V main power supply. Three-phase 50Hz
- Automatic star-delta starting
- Saw motor: 5.5 kW
- Scoring motor: 0.75 kW
Exhaust: Upper inlet Ø80 mm, lower Ø120 mm
- Recommended flow rate: 1200 m3/h
- CE marked
Padlockable disconnect switch, Mushroom stops

Floor space in operating order: 7100 x 5370 x 1550 mm
Transport space (L x W x H): 100 x 100 x 100 cm
Weight: 867 kg
