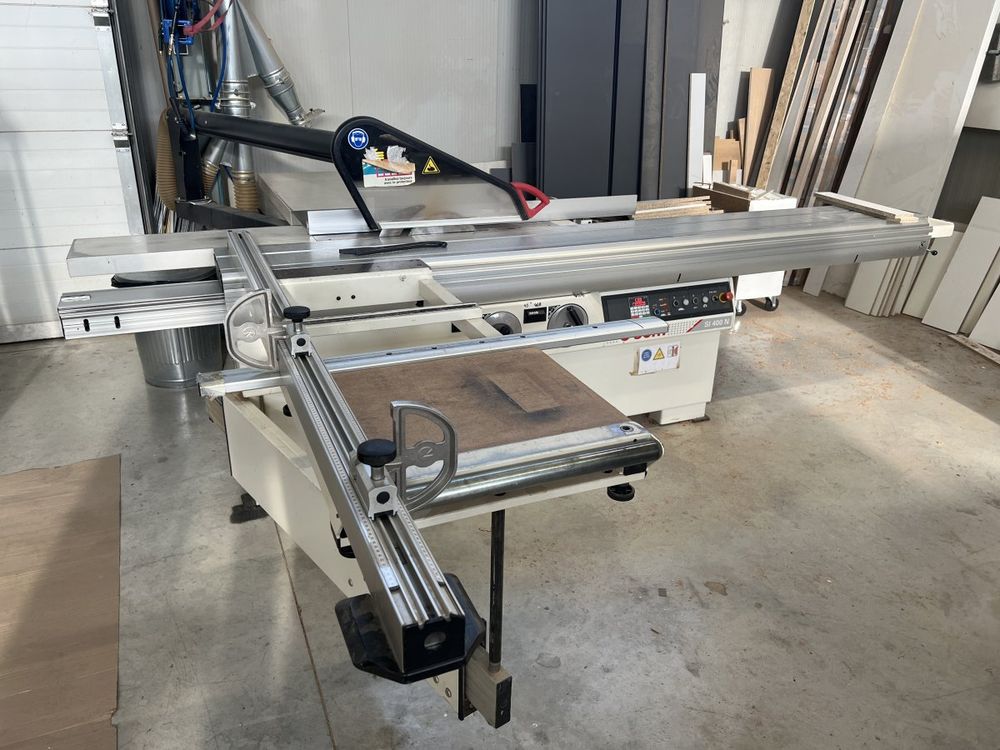

SCM SI 400N

Panel Saw
Condition: Used

Technical Specifications:
- Manual feed and tilt adjustment with mechanical counter display - Manual tilt adjustment with mechanical counter display - Digital guide with digital display
- Maximum cutting height at 90° = 140 mm with a 400 mm blade
- Maximum cutting height at 45° = 97 mm with a 400 mm blade
- Blade tilt: 45° - Scoring blade
- Manual blade lift and tilt
- Main blade speed: 3000/4000/5000 RPM
- Scoring blade speed: 8500 RPM
- Main blade motor power (S6 -40%) 7kW (9.5hp) 50Hz
-Scoring blade motor power (S6 -40%) 1.3kW (1.7hp) 50Hz
-Squaring capacity with carriage: 3200 mm = 3200x3200 mm
-Cutting width with parallel guide: 1270 mm
-Dust extraction port diameter on frame: 120 mm
-Dust extraction port diameter on suspended guard: 100 mm
-Dust extraction port diameter on riving knife: 60 mm
