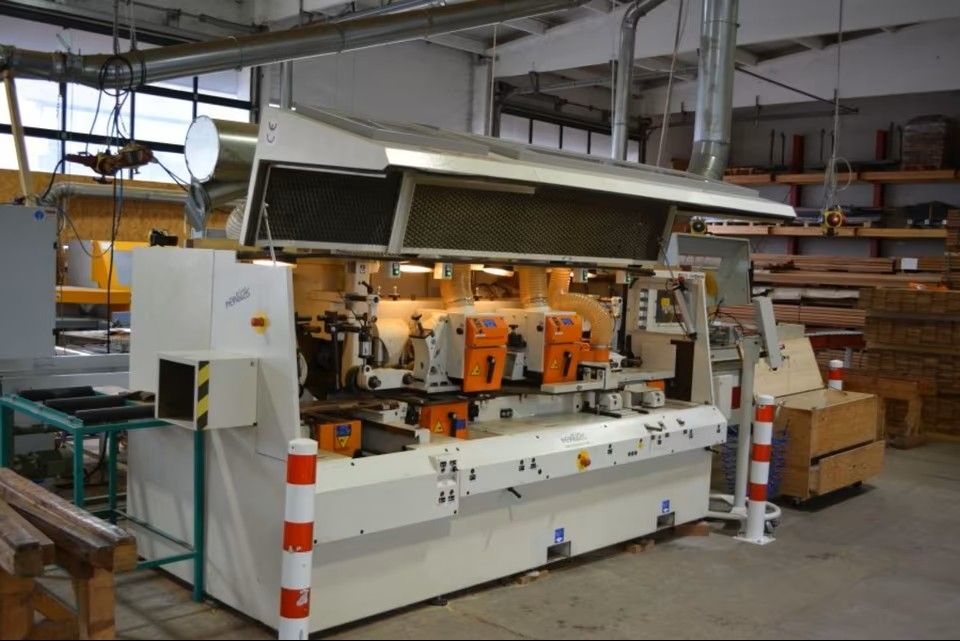

SCM Superset NTE Profile milling machine

Technical data:
- Touchscreen operation Machine with 6 spindles + UNIWELLE
- Spindle speed 8,300 rpm
- Working width 240 mm Working height 125 mm Electronic
- Touchscreen control MOBILE 10 ·
- HSK 85S
- SPINDLE QUICK-CHANGE SYSTEM · T-SET
- QUICK-CLAMPING DEVICE for tools ·
- 7 shaft AS UNIWELLE · Suitable for cutting.
-2 feed units after the upper spindles for reducing the center distance from 620 to 450 mm ·
- Motor-driven feed roller in the work table · Basic equipment for forced lubrication Electronic horizontal positioning · Electronic adjustment of the tool diameter (setup) ·
- Manual pump for lubricating the work table ·
- WITH machining tool

- Min. working width (finished dimension) mm 15 ·
- Max. working width (finished dimension) mm 240 ·
- Min. length of individual workpiece mm 450 ·
- Feed speed controlled via inverter 6 - 36 m/min · Feed motor power kW 4 ·
- Dressing spindle motor power kW 7.5 · Quick-clamping device
- Right vertical spindle motor power kW 7.5 · Powerlock HSK 85
- Left vertical spindle motor power kW 7.5 · Powerlock HSK 85
- Motor power e upper horizontal spindle kW 7.5 · Quick clamping device
- Motor power 2nd upper horizontal spindle kW 7.5 · Powerlock HSK 85
- Motor power lower horizontal spindle kW 7.5 · Powerlock HSK 85
- Motor power universal spindle kW 7.5 · Quick clamping device
- Spindle speed rpm 6000/8300 ·
- Spindle diameter mm 40 ·
- Spindle mounting length vertical mm 220 ·
- Spindle mounting length horizontal mm 250 ·
- Axial adjustment range of vertical spindles standard mm 75 ·
- Axial adjustment range of horizontal spindles standard mm 45 · Min. Max.
- Flight circle diameter of dressers mm 120/140 mm · Min. Max
- Flight circle diameter of profile spindles mm 100/200 ·
- Profiling depth of the 2nd lower shaft with tool diameter mm 200 mm 15 ·
- Diameter of the spindle cylinders mm 120 ·
- Diameter of the feed rollers mm 140 ·
- Feed table length mm 2500 ·
- Adjustment range of feed table and infeed guide 10 mm.
- Motor-driven feed roller in the outfeed table ·
- Manual central lubrication ·
- On/off switch for the feed unit before the planer ·
- Horizontal pressure before the planer with on/off switch ·
- Pressure shoes at the front of the protective cover of the horizontal spindle(s) · Hardened insert in the work table before the planer ·
- Pneumatic pressure shoes in front of the upper horizontal spindles ·
- Horizontal pressure device in front of the planing shaft can be activated from the control panel ·
- 2 feed rollers 140 x 25 per feed shaft ·
- Lighting inside the protective cover
- Extraction capacity min. 10,443 m3/h

- Includes extraction hose!
- Includes Powerlock mounting bracket
- All 240 mm heads are installed horizontally and securely. Tools on HSK spindles are included.
- Spare parts catalog: Complete 8 PDF catalogs available
