SCM T 150
Ref :
2716161-15-MT
Condition :
Used
Manufacturer :
SCM
Model :
T 150
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)

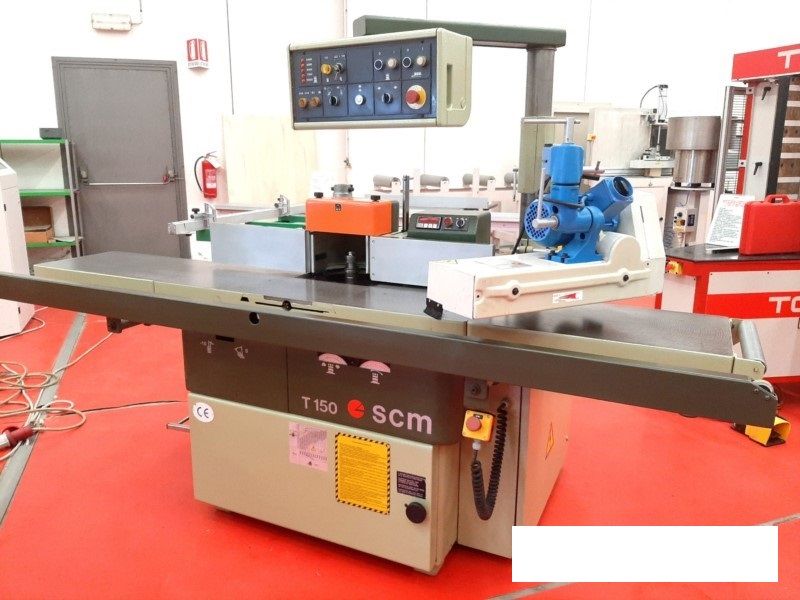

Automatic spindle moulder with tilting shaft and extended tables - CE standard
Technical data:
Shaft tilting from -10 to +45 degrees
Shaft diameter mm 35
Worktable length mm 2600
Height from ground of worktable mm 920
Max shaft projection from worktable mm 215
Shaft rotation speed rpm 3000/4500/6000/7000/10.000
Motor power Hp 7,5
Motorised shaft lifting
Motorised shaft inclination
Diameter of suction mouth mm 120
Adjustable table
Automatic movement register with display
Extension for supporting large workpieces
Support for feeder
Automatic 4-roller feeder with variable speed
Overall dimensions: mm 2600 x 1400 x 1800 h
Weight kg 990
