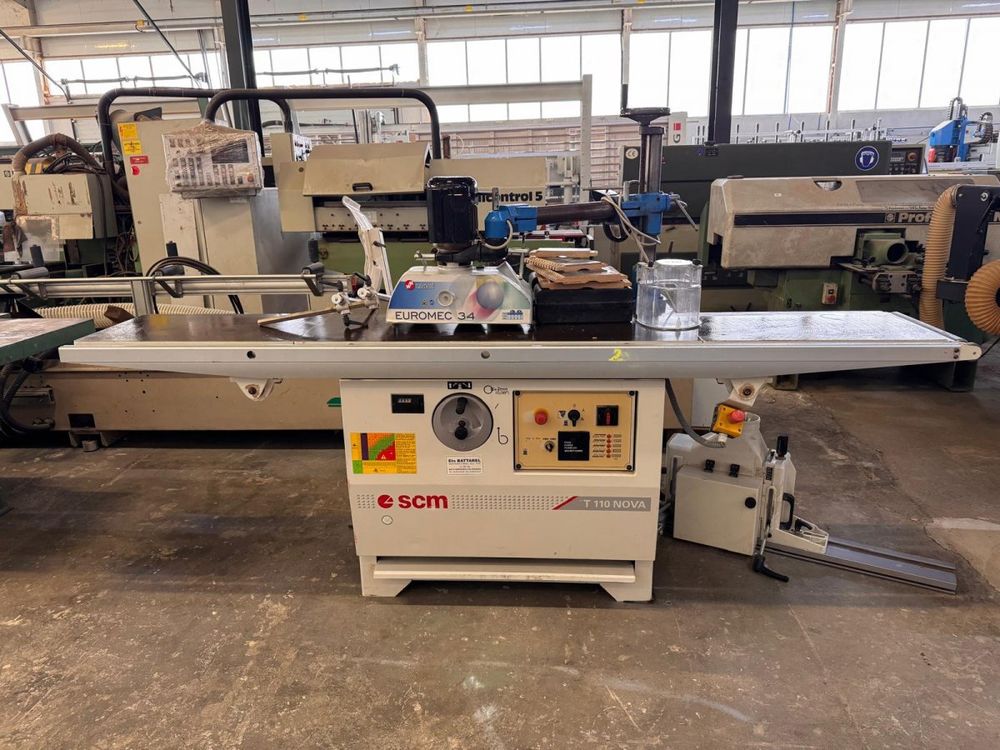

SCM T110 NOVA

Spindle Moulder
Condition: Used

Technical Specifications:
- Spindle: Ø50 mm
Usable Length (above the table): 150 mm
Vertical Spindle Travel: 150 mm

- Spindle Speeds: 3000/4500/6000/8000 RPM
- Robust Welded Frame
- Cast Iron Table (W x D): 1000 x 650 mm

Complete Set of Table Bushings
Tools that fit in the table: Ø320 x H.90 mm

- Fixed Wooden Jigs
Maximum Tool Diameter for Working with the Jig: Ø200 mm

- Spindle Guard
- Power Supply 380V, Three-phase 50Hz, InMax 10.8A
- Manual star-delta start
- 4 kW (5.44 hp) motor
- Foot pedal braking
- Lockable disconnect switch, emergency stop button
- Standardized guard for working with support against the guide
- Dust extraction ports: 2 x 120 mm
Dimensions (W x D x H): 1.10 x 0.90 x 1.70 m
Weight: 430 kg
