SCM TECNOMAX S350 WS

SECTION SAW WITH SCORTING BLADE, WITH 3.20M FLUSH-TO-BLADE CARRIAGE
Electric lift and tilt (digital display) and additional miter cutting device

MAKING CAPACITIES:
- Ripping length, carriage travel: 3200 mm
- Maximum cutting width at the rip fence: 1300 mm
- Squaring capacity (end cutting, crosscutting): 3200 mm
- Blades tilt 90° - 45°
Maximum cutting height at 90°: 118 mm & at 45°: 81 mm
- Blade speeds: 3500/4200/5000 rpm
- Scoring saw speed: 9200 rpm

COMPOSITION:
- Mechanically welded frame
- Worktop height: 90 cm
Main table (WxD) 840x1500 mm
Left side table extension (WxD) 730x500 mm
- Blade guard suspended on a bracket
- ​​Max. saw blade diameter 350 mm, bore diameter 30 mm
- Scoring saw blade diameter 120 mm, bore diameter 20 mm
- Electric lift and lowering systems
- Digital front tilt control and display
Retractable 1200x90 mm parallel fence
- Sliding carriage flush with the blade, 3200x315 mm, with handle
Eccentric pressure plate, clamping shoe (ripping stop), and pusher

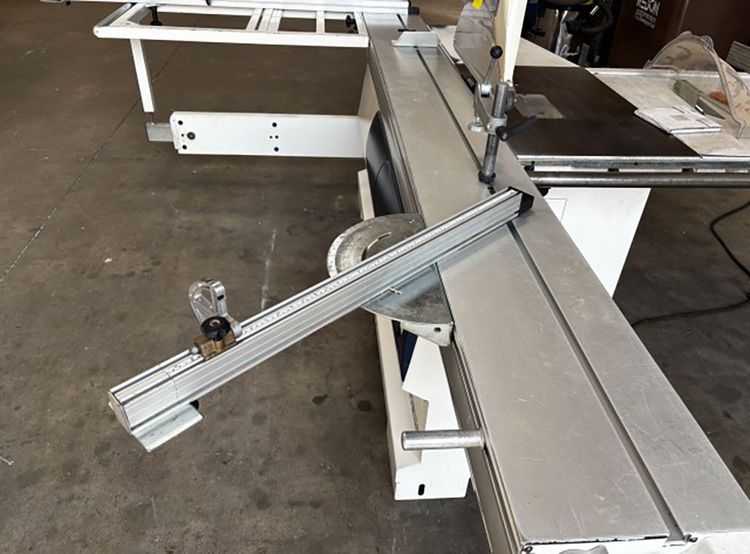

Additional miter cutting device:
2nd telescopic graduated ruler and Tilting
and 1 reversible stop
- Squaring table (Side frame) LxW: 1200x550 mm
Telescopic and tilting main scale
2 reversible stops
Intermediate supports in the frame, 400 mm from the carriage, with angle indication
End roller for loading/unloading assistance

OTHER FEATURES:
- 400V main power supply. Three-phase 50Hz 12A
- Automatic star-delta starting
- Saw motor 5.5 kW (7.5 hp)
- Scoring motor 0.5 kW (0.7 hp)
Exhaust: Upper inlet Ø80 mm + Ø60 mm, lower Ø120 mm
- Minimum flow rate 1300 m3/h
- CE marked
Padlockable disconnect switch, Mushroom stops
Dimensions for disassembled transport (LxWxH): 3200x1900x1700 mm
Weight: 686 kg
