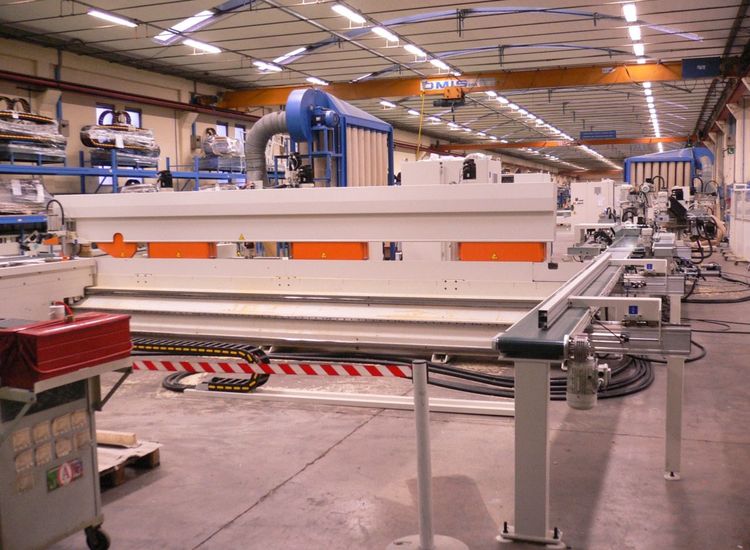

SCM Windor 100

Powerful and flexible CNC manufacturing system for windows and doors
Processing of workpieces up to a maximum length of 4500 mm, width of 250 mm, and thickness of 150 mm

Including Windor 60 type B:
Slotted part:
Item 1: Miter saw
- Motor 4 kW
- 3000 rpm
- Spindle diameter 40 mm
- Maximum tool diameter 400 mm, bore 80 mm

Item 2: 1st slotting spindle
- High-performance spindle with top bearing, spindle length 620 mm
- Spindle diameter 50 mm
- Motor 11 kW
- 3500 rpm
- Maximum tool diameter 370 mm
- "Jolly" counter-lock device
- Continuously variable vertical positioning
- Interpolating rotary Automatic tilting window adjustment +/- 60 degrees

Item 3: Electric spindle with HSK 63 F tool holder
- min/max. Rotation speed 1000-12000 rpm
- Maximum motor power 11 kW
- Water cooling
- Rapid 24 automatic tool changer with 24 positions

Item 4: 2nd slotted spindle
- High-performance spindle with top bearing, spindle length 620 mm
- Spindle diameter 50 mm
- Motor 11 kW
- 3500 rpm
- Maximum tool diameter 370 mm
- "Jolly" locking device
- Continuously variable vertical positioning
- Interpolating rotary tables, automatic inclined window adjustment +/- 60 degrees

Fleximat
Including left and right stops with horizontal CNC adjustment for the following through-feed operations:
Lock case milling and 9-degree anuba drilling from the right.
Dowel drilling and strike plate marking from the left and right, 7 spindles each.
Cup hinge holes and olive holes from above.

Profile part
Item 5: Power 2000 F4: Electric spindle with HSK 63 F tool holder
- Working from the left
- Min./max. rotational speed 1000-18000 rpm
- Maximum motor power 12 kW
- Water cooling
- Rapid 24 automatic tool changer with 24 positions

Item 6: 1st profile spindle from the right
- High-performance spindle with top bearing, spindle length 620 mm
- Spindle diameter 50 mm
- Motor 11 kW
- 6000 rpm
- Min./max. tool diameter 130-250 mm
- Continuous vertical positioning
- Continuous horizontal positioning

Item 7: 2nd profile spindle from the right
- High-performance spindle with top bearing, spindle length 620 mm
- Spindle diameter 50 mm
- Motor 11 kW
- 6000 rpm
- Tool diameter min./max. 130-250 mm
- Continuous vertical positioning
- Continuous horizontal positioning

Item 7: 3rd profile spindle from the right
- High-performance spindle with top bearing, spindle length 620 mm
- Spindle diameter 50 mm
- Motor 11 kW
- 6000 rpm
- Tool diameter min./max. 130-250 mm
- Continuous vertical positioning
- Continuous horizontal positioning

Item 9: Device for glazing bead removal
