Simon CNC milling machine with a moving gantry 3-axis
EUROPE (Western and Northern)

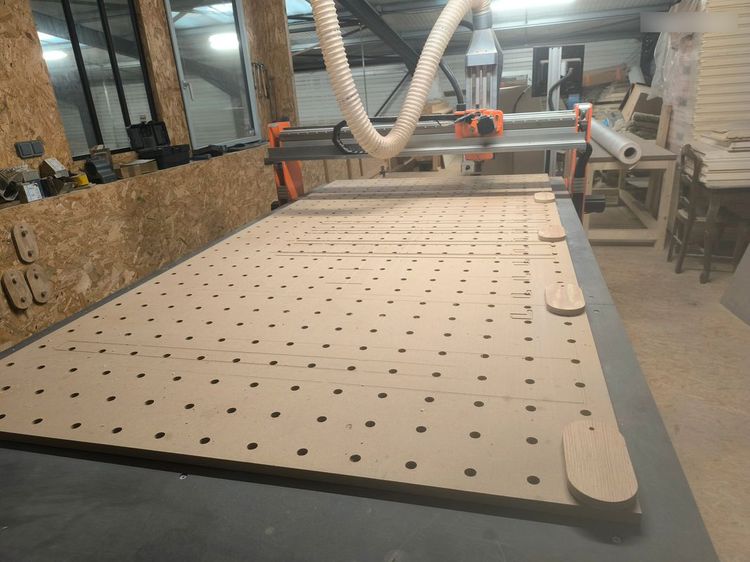

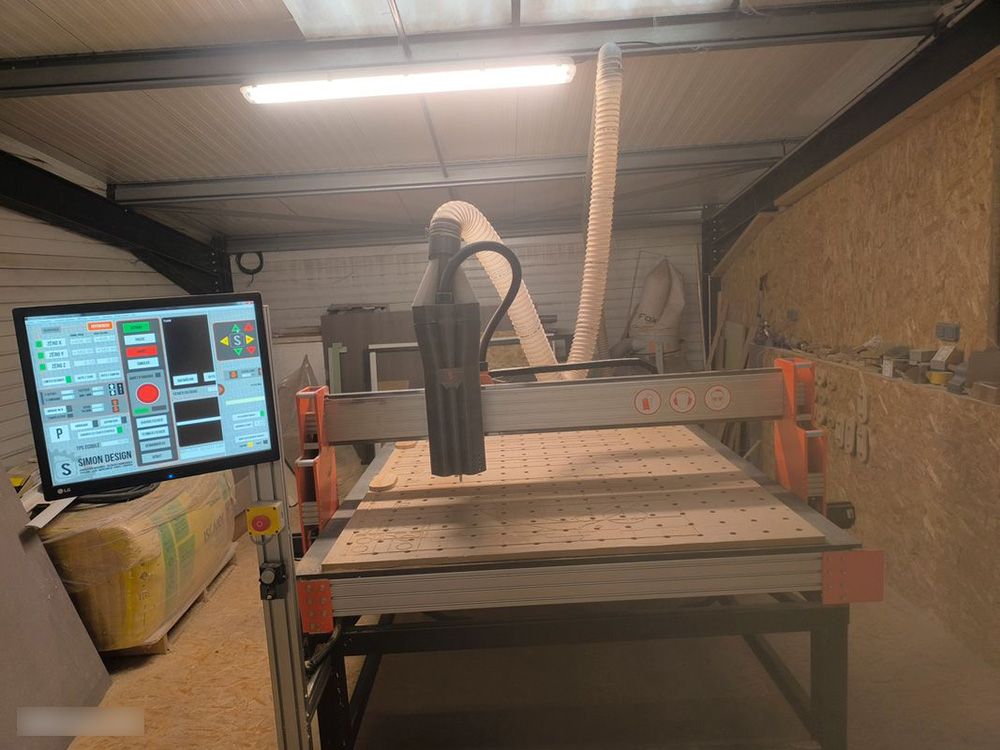

3-axis CNC milling machine with a moving gantry
Robust, industrial-sized machine, ideal for shopfitting and sign making (machining wood, aluminum, 2.5D/3D).
Important note: Although the company is no longer in business, the machine is built with high-quality standard components (HIWIN, NEMA, Mach3).
After-sales service and spare parts are readily available.

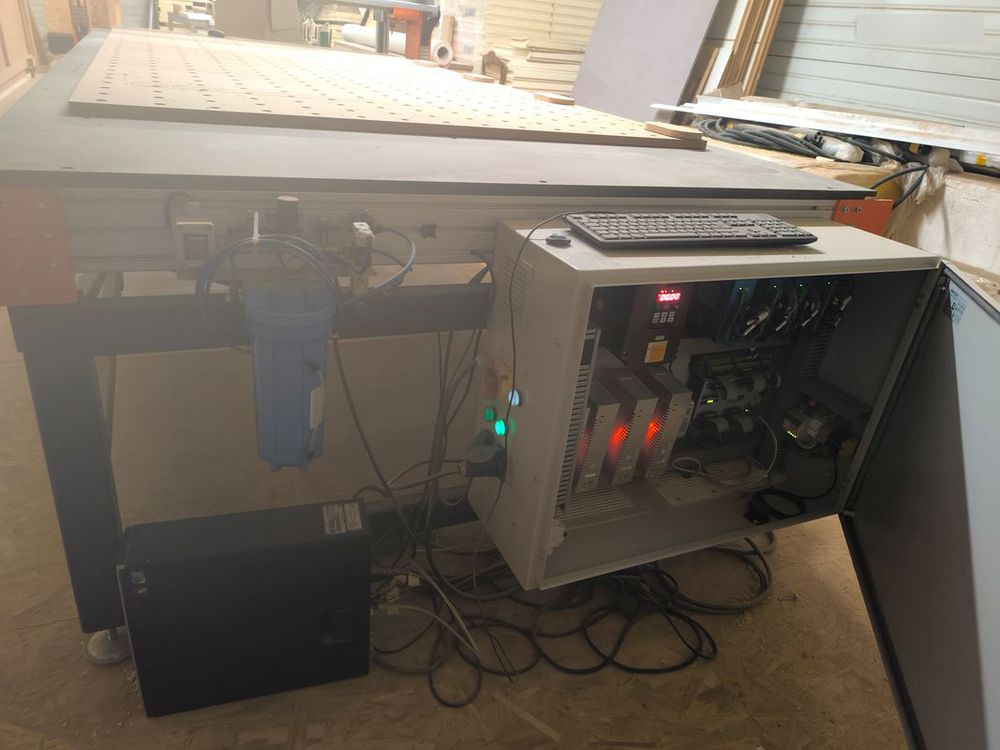

Control system:

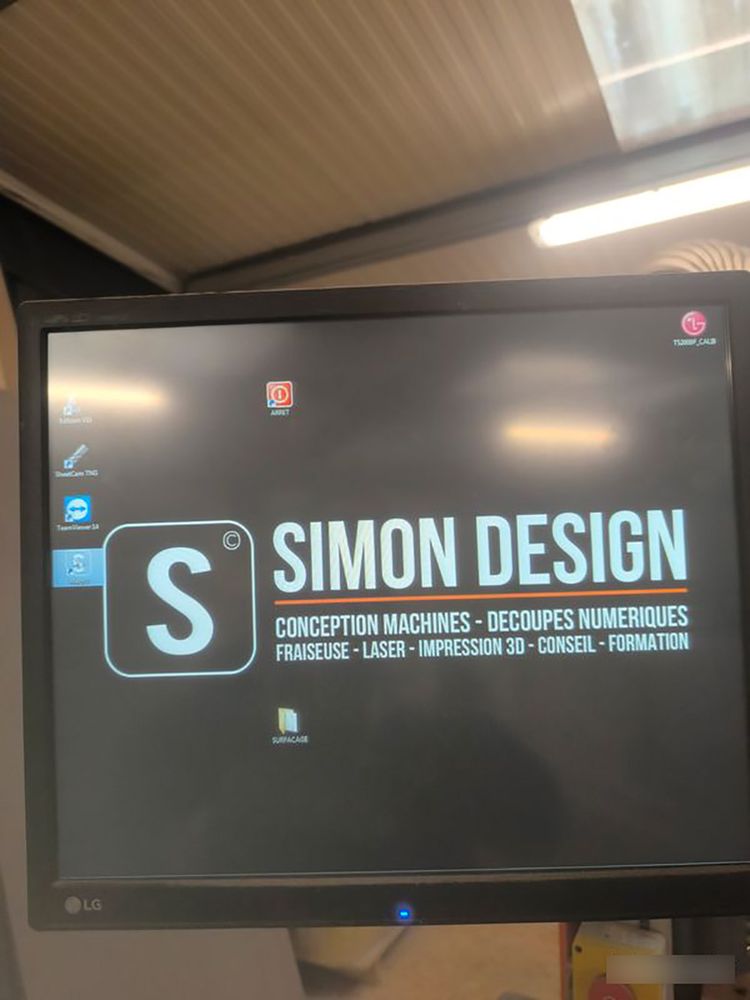

• Software: Mach3 (standard, reliable, and user-friendly).
Capacities and Mechanics:
• Working dimensions: 1500 x 3000 x 200 mm (Full panels).
• Guidance: HIWIN prismatic linear on all 3 axes.
• Transmission: Rack and pinion (X and Y) / Ball screw (Z).
• Motors: NEMA 34 with 8N.m encoders (fast travel, no step loss).
• Spindle: 2.2 kW air-cooled.
Included equipment:
• Dust extraction: Chip extractor + 5m hose + special panel brush shoe (automatic control via relay).
• Adjustments: Wireless probe for automatic Z-axis zeroing.

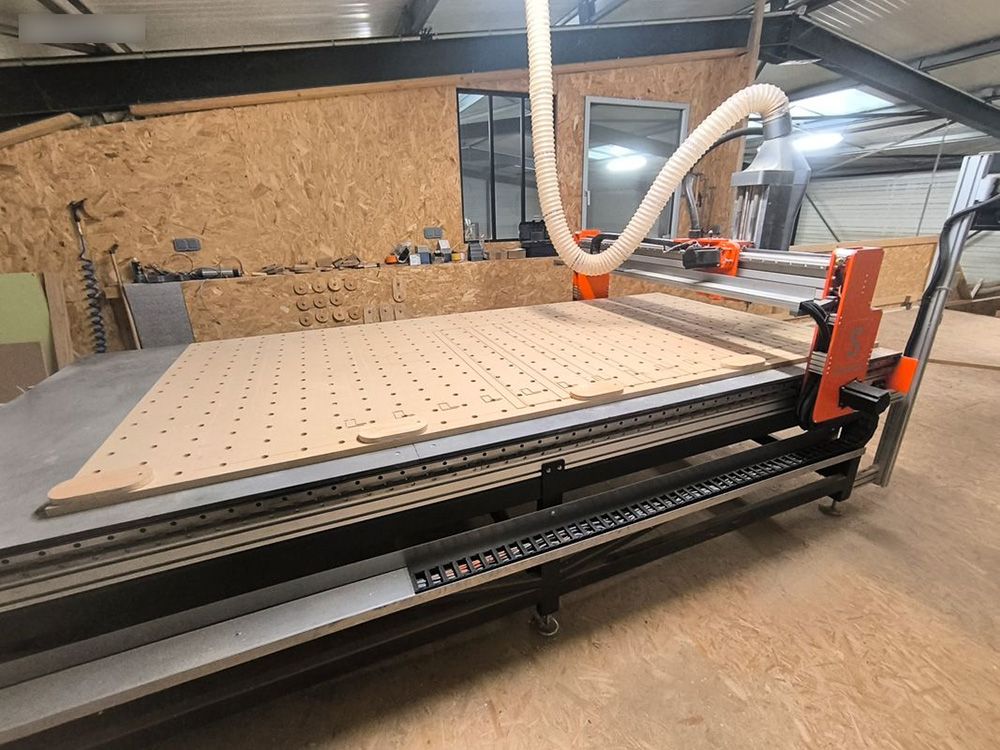

• Frame: Custom welded frame with reinforced X-beam.
