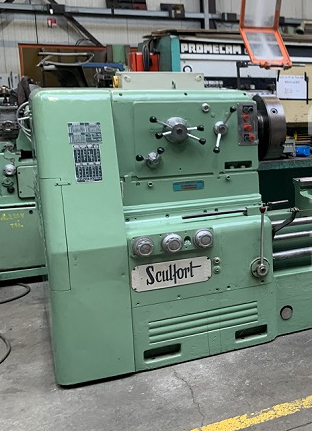

Sculfort Engine Lathe 1280 rpm MAXICAP SENIOR 380 x 4000 RN
Ref :
2773912-3-MT
Condition :
Used
Manufacturer :
Sculfort
Type :
Engine Lathe
Spindle Speed :
1280 rpm
Model :
MAXICAP SENIOR 380 x 4000 RN
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Between centers: 4000 mm
Maximum swing over bed: 780 mm
Maximum swing over saddle: 580 mm
Maximum swing over saddle (without rear carriage): 500 mm
Maximum swing in gap bed: 1160 mm
Gap bed width: 400 mm
Spindle bore: 80 mm
Spindle speed range: 16–1280 rpm
Motor power: 13 CV
Chuck: 3-jaw chuck Ø 400 mm
Turret type: Square turret
Tailstock taper: Morse taper CM6
Thread cutting: Metric
Thread cutting: Whitworth
Feeds: Automatic longitudinal feed
Feeds: Automatic transverse feed
Rapid traverse clutch
Steady rest: 3-point steady Ø 350 mm
Coolant system with lubricant tank
Overall dimensions: 6500 × 1800 × 1900 mm
Machine weight: approx. 7 t
