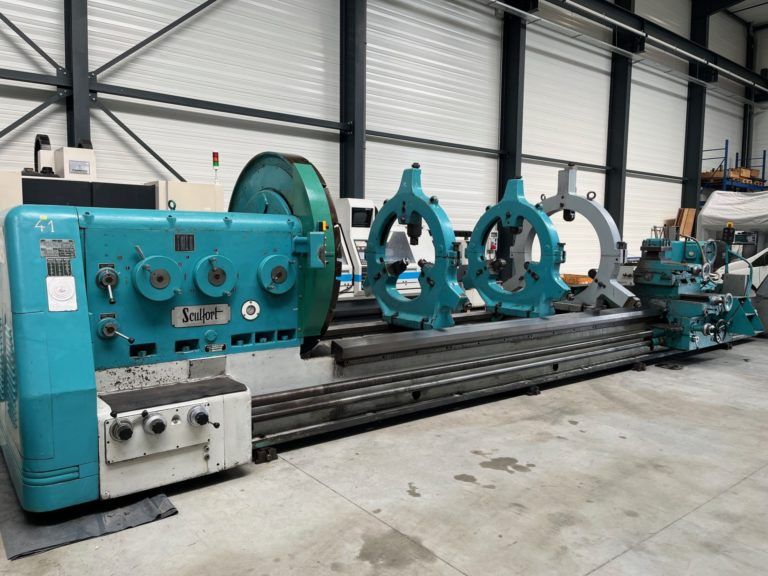

Sculfort Engine Lathe 150 RPM FABRICAP 650
Ref :
2744877-3-MT
Condition :
Used
Manufacturer :
Sculfort
Type :
Engine Lathe
Spindle Speed :
150 RPM
Model :
FABRICAP 650
Year(s) :
1962
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Distance between centres: 6000 mm
Swing over bed: 1400 mm
Max turn diameter over saddle: 1000 mm
Max swing in gap: 1750 mm
Tailstock quill diameter: 200 mm
Tailstock quill stroke: 400 mm
Tailstock taper: M 100
Spindle bore: 120 mm
Spindle speeds: 1.5 – 150 RPM
Max load between centres without steadies: 12,000 kg
Max load between centres at 3 RPM: 20,000 kg
Max load on chuck at 3 RPM: 5000 kg
4 jaw chuck 1700 mm
2 off 3 point steadies diameter 300–600 mm
3 point steady diameter 600–1000 mm
Hard ways
DRO
Rapid traverse
