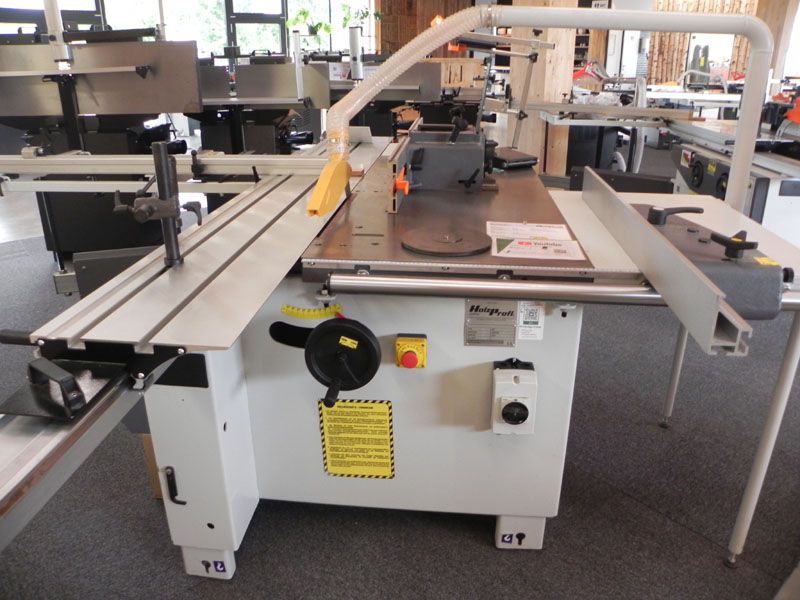

SF2

Panel Saw and Router Special Accessories Demonstration
Aluminum sliding table with hardened steel guide rods. 1800 mm telescopic crosscut stop with two stop flaps is standard.
Stable outrigger table for machining heavy panels.
Parallel stop with micrometric fine adjustment.
Fully retractable router spindle and saw blade.
Replaceable router spindle with MK4 chuck.
With its own motor for the scoring unit for easy switching off.
100% Made in the EU (developed, built, quality-tested)

Circular saw:
Max. saw blade diameter 315 mm
Spindle diameter 30 mm
Max. cutting width at the parallel stop 1100 mm
Max. cutting height at 90°/45°: 103 mm/72 mm
Motor output: 5 kW S6 (4 kW S1)
Extraction nozzle diameter: 120 mm

Mill cutter:
Spindle diameter 30 mm
Pivoting spindle 90°/45°
Spindle height adjustment: 175 mm
Spindle speed 10000/8000/6000/
5000/4000/3000
Motor output: 5 kW S6 (4 kW S1)
Weight: 790 kg

With special accessories:
Sizing table length 2800 mm
Scoring unit, 4 kW motor, integral stop 500 mm
Upper extraction, degree grid on the delivery table
