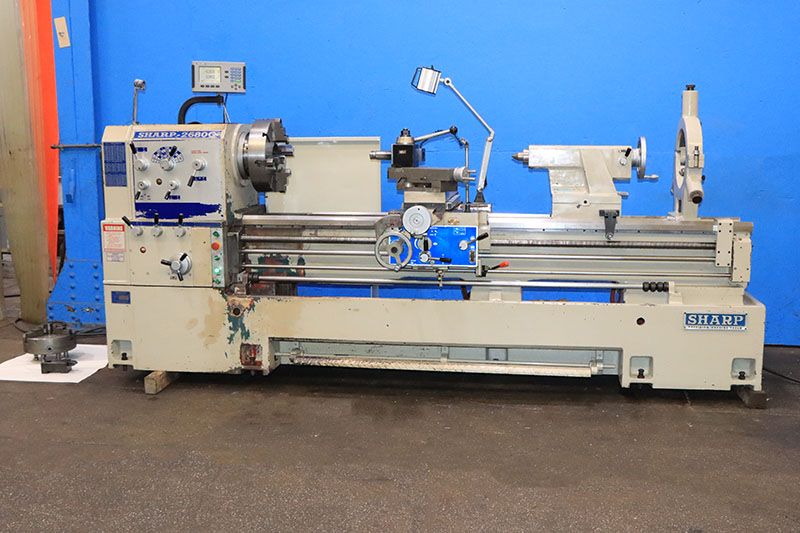

Sharp Gap Bed Engine Lathe 1500 RPM (12 steps) 2680C

Swing over bed 26"
Swing in gap 35"
Swing over cross slide 17.24"

Distance between centers 80"
Spindle speeds 15–1500 RPM (12 steps)
Spindle nose D1-8 camlock
Spindle bore 3.125"
Headstock spindle taper #5 Morse

Feed range longitudinal .002–.032 IPR
Feed range cross .005–.018 IPR

Thread range inch 2–56 TPI
Thread range metric 0.5–14 mm

Tailstock quill travel 6.5"
Tailstock diameter 3.34"
Tailstock spindle taper #5 Morse

Cross slide travel 13.75"
Bed width 15.75"

Motor 15 HP
Voltage 220–440V 3 phase

Digital readout ACU-RITE 2-axis
3-jaw chuck 12"
4-jaw chuck 15-5/8"
Steady rest 11-1/2" capacity
Quick change toolpost Aloris DA
Foot treadle spindle brake
Carriage stop 4-position
Coolant system
Gap bed removable
Hardened and ground ways
Meehanite cast iron bed
