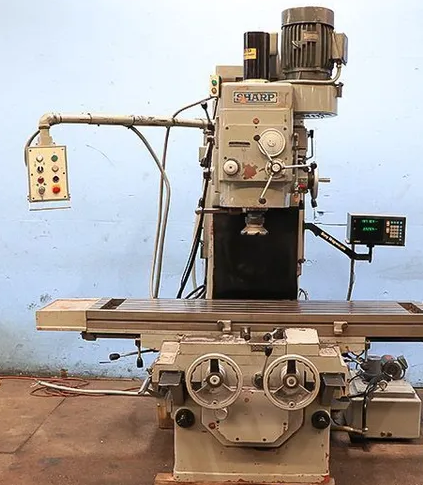

Sharp KMA-1 Vertical 1500 RPM

Table size 67" x 15.94"
Longitudinal table travel 39.75"
Cross table travel 14.94"
Head vertical travel 19.69"
Maximum distance spindle nose to table 23.63"
Feed range longitudinal & cross 1–34 IPM
Feed range vertical head 0.002–0.008 IPM
Spindle taper #50 STD
Spindle speeds (12) 45–1500 RPM
Approximate dimensions 126" x 79" x 87"H
Approximate weight 8800 lbs

Sony two-axis digital readout
Hardened & ground box guideways
Power rapid traverse
Backlash eliminator
Power draw bar
Automatic lubrication system
10 HP spindle motor
