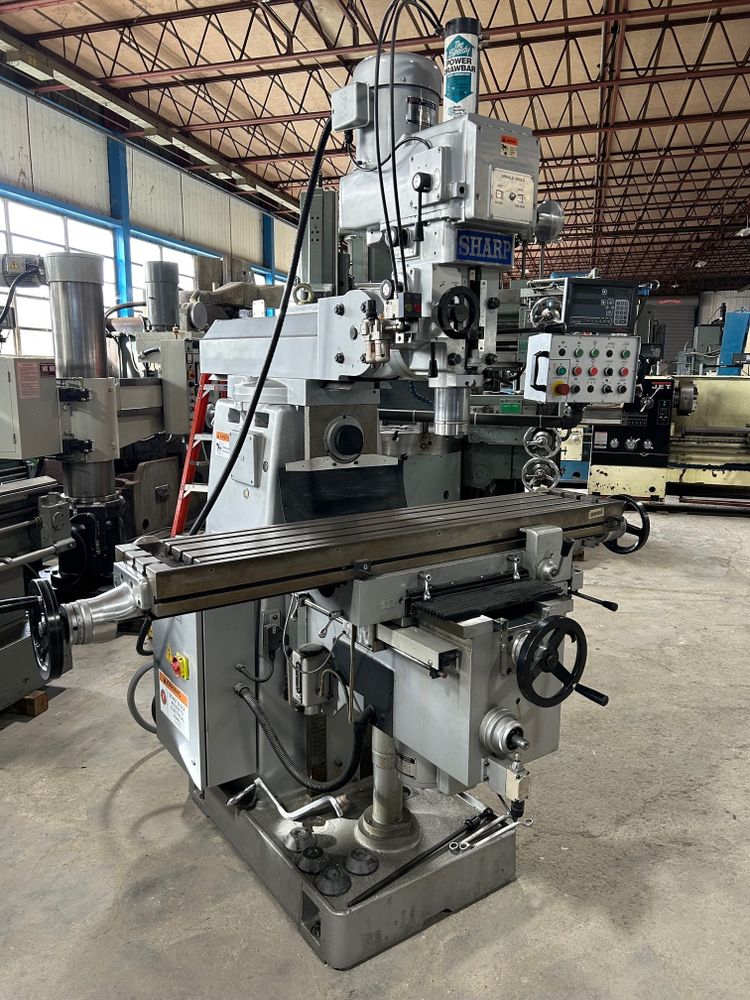

Sharp VH-25 Vertical/Horizontal 4500 rpm

36" longitudinal travel
16.5" cross travel
17.5" vertical knee travel
18.5" ram travel
5" quill travel
82 IPM longitudinal rapid traverse
7/8–27 IPM longitudinal feeds
0.0016 IPM power quill feed
0.003 IPM power quill feed
0.006 IPM power quill feed
360° turret swivel
45° head tilt front and back
90° head tilt left and right
12-13/16" to 30-11/16" spindle center to column
5-5/16" to 23" spindle nose to table
0–17-3/8" horizontal spindle center to table
10" x 56" table working surface
4 hp vertical spindle motor
5 hp horizontal spindle motor
60–4500 rpm vertical spindle speed
80, 120, 230, 380, 700, 1350 rpm horizontal spindle speeds
NST #40 vertical spindle taper
NST #40 horizontal spindle taper
3.5" quill diameter
4200 lbs net weight
82" machine length
75" machine width
93" machine height

NEWALL two-axis digital readout
Longitudinal table powerfeed with rapid traverse
Rapid knee traverse
Hardened and ground boxways on saddle and column
Flood coolant
