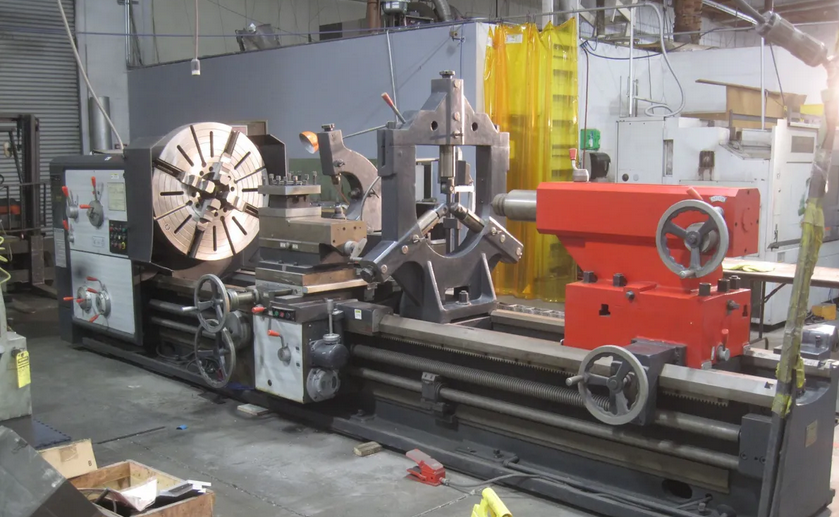

Shenyang Engine Lathe Variable Speed CW61125B

Ref : 2784929-3-AW

Condition : Used

Manufacturer : Shenyang

Type : Engine Lathe

Spindle Speed : Variable Speed

Model : CW61125B

Year(s) : -

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

Swing: 39.37"
Swing: 49.21"
Swing Over Cross Slide: 24"
Swing Over Cross Slide: 33.46"
Distance Between Centers: 59"
Distance Between Centers: 118.11"
Distance Between Centers: 196.85"
Distance Between Centers: 590.55"
Spindle Bore: 5.11"
Spindle Taper: 5.51"
Number of Spindle Speeds (Forward): 21
Number of Spindle Speeds (Reverse): 12
Longitudinal Feed: 0.0039 - 0.47 in/rev
Cross Feed: 0.0019 - 0.23 in/rev
Upper Tool Post Feed: 0.00098 - 0.118 in/rev
Metric Thread Range: 0.039 - 4.72"
Inch Thread Range: 24 - 1/4 TPI
Module Thread Range: 0.019 - 2.36"
Diametral Pitch Thread Range: 1/2 - 56 DP
Cross Travel: 20.47"
