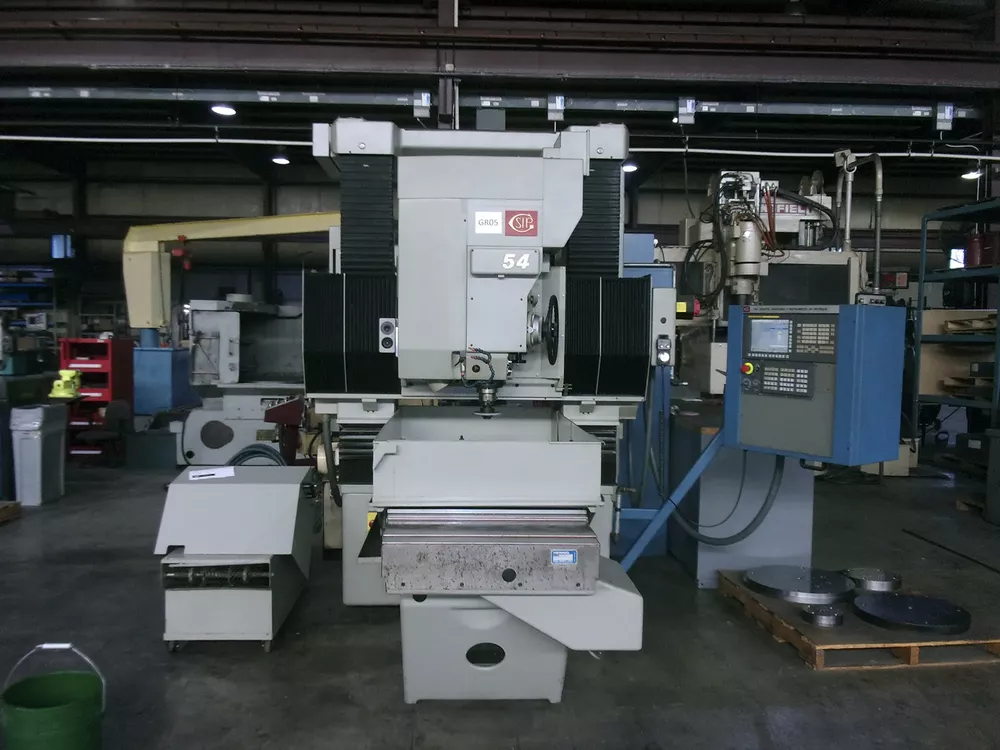

SIP MP-54 Jig Bore CNC 4000 RPM

X-axis travel: 35.5"
Y-axis travel: 23.5"
Z-axis travel: 7.75"
W-axis travel: 25"

Control: Fanuc 0i MF CNC Control
New scales for X Y Z: 0.0001 mm / 0.00001" resolution
Frequency converter
Programmable coolant system with paper filtering
Splash guard
Oil mist supply for spindle lubrication
Spindle speed: 5 – 4000 RPM
Spindle motor power: 6.8 HP
Spindle taper: ISO 40
Electric high-speed spindle: 45000 RPM
100 mm Schaublin E19 arbor
Table size: 40" x 34"
Maximum load: 1760 lbs
Maximum distance under spindle: 33.5"
Distance between uprights: 37.25"
Quill diameter: 4 5/16"
Maximum feedrate: 236 IPM (XYZ)
Machine weight: 14800 lbs
4 digital axis drives and AC motors (XYZW)
New AC spindle drive and motor
Locking ring for spindle
Removable below cover
