Sliding table

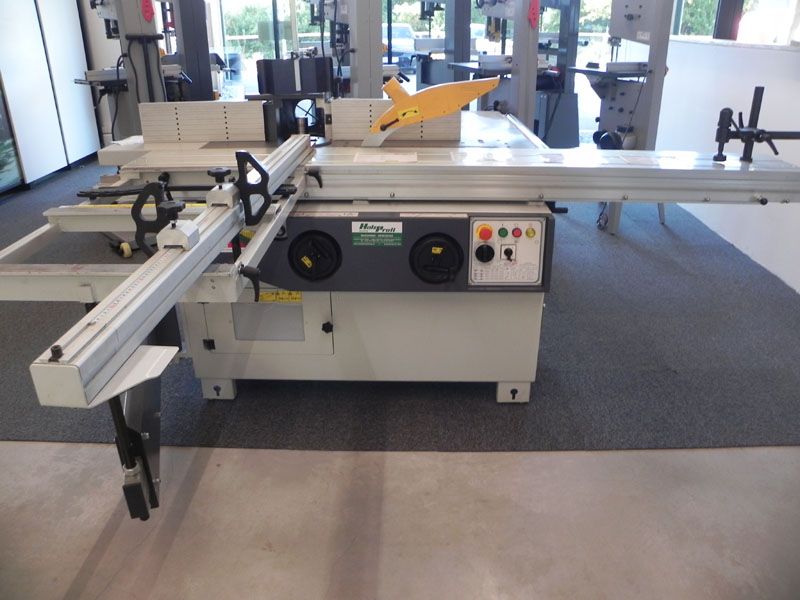

Exhibition machine saw-mill 2300mm Holzprofi
Demonstration machine; sample photo
Aluminum sliding table with hardened steel guide rods.
1400 mm telescopic crosscut stop with two stop flaps is standard.
Sturdy outrigger table with a degree grid for processing heavy panels.
Parallel stop with micrometric fine adjustment.
Saw blade tilt adjustment up to 45° using a scale on the handwheel.
Eccentric clamp and 500mm integral stop.

Technical specifications:
Circular saw:
Max. saw blade diameter 315 mm
Spindle diameter 30 mm
Max. cutting width at the parallel stop 850 mm
Max. cutting height at 90°/45° 103 mm/72 mm
Motor power output 3.8 kW S6 (3 kW S1)
Extraction nozzle diameter 120 mm
Sizing table length 2300 mm

Mill:
Spindle diameter 30 mm
Spindle height adjustment 160 mm
Spindle speed 8000/6000/3500/1500
Motor power output 3.8 kW S6 (3 kW S1)
Weight 520 kg
