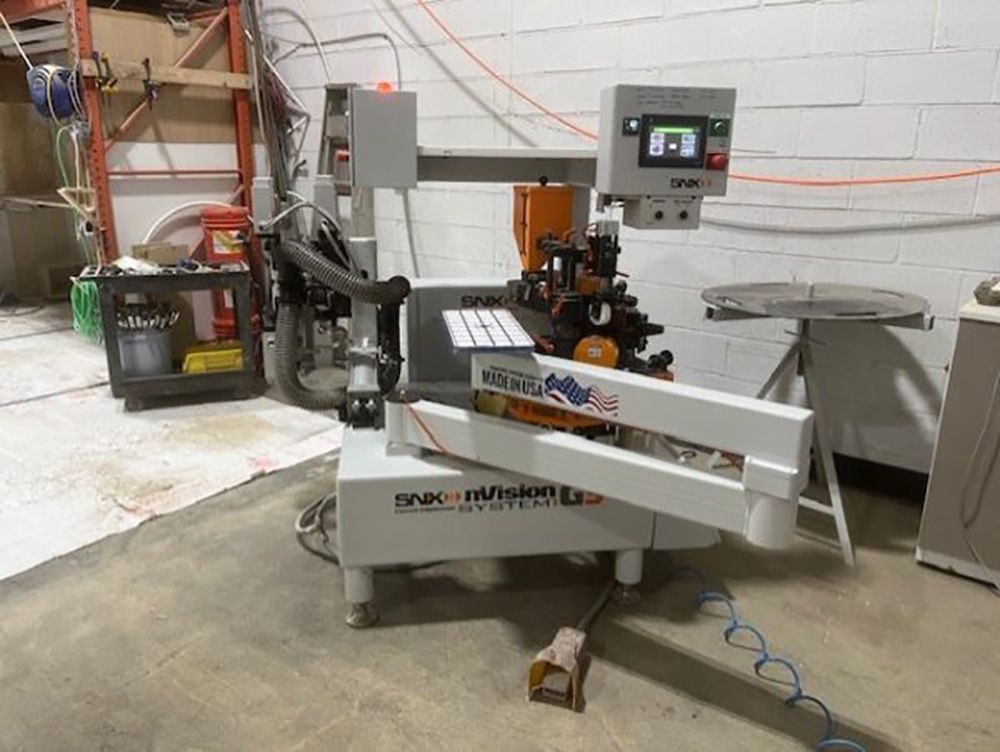

SNX nVision System1 G3 Contour

Edgebander
UL-certified electrical cabinet – fully-compliant with codes
Heavy-duty machined frame – added stability absorbs vibrations that could affect banding quality
Large touch-screen graphical PLC controller – less need for special training or language translation to operate machine
Articulated vacuum pod arm supports parts – maximum panel weight = 230lbs!
Machine can band and trim parts up to 10’ in size! – ideal for closet parts, lockers
Machine designed to apply hot melt EVA (Ethylene Vinyl Acetate) adhesive on 0.5, 1, 2, and 3mm tape – can also band some wood veneers & special tapes
All machine drive systems (spindles, rollers) powered by an up-sized Baldor motor – quiet, reliable power
Spindle drive system uses SNX Armordrive serpentine Kevlar belt – smoother, quieter, longer life operation without the need for lubrication
Triax 3-axis laser system (patent pending) ensures consistently tighter butt joints on panels – for better looking products, consistent performance.
Incredibly tight inner and outer radius bands – can out-band more expensive CNC machines!
Glue pot holds 1kg of adhesive, machine has hopper with laser-guided auto-filling of the glue pot – never run out of glue again
Trimming unit trims top and bottom tape overhang of finished bands using same vacuum arm;
trim station retracts pneumatically to allow swings of large parts during banding process
