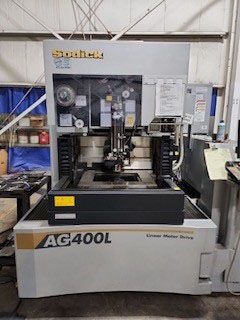

Sodick AG400L

Sodick AG400L
Year: 2012

LN2W/LPW400 CNC Control & Power Supply
Program Input Method by Keyboard, USB & Ethernet
Linear Motor Design - No Ball Screws
Glass Scales
Fixed Jet Auto Wire Threader

– X Axis Travel – 15.75″
– Y Axis Travel – 11.81″
– Z Axis Travel – 9.87″
– U & V Travels - +/- 4.73"
– Max Workpiece: 24" x 18" x 9"
– Max Workplace Weight – 1,102 lbs.

Inside Tank Dimensions: 33.460" x 24.020"
– Wire Diameter: .002″~0.12″
–Wire Speed: 420mm/Second Max
– Dielectric Fluid Capacity: 600 Liters
–Chiller: Yes
– Machine Tool Dims: 86.68″ x 87.99″ x 86.61″
– Approx. Weight: 8,377 Lbs.
– 200 Volts/3/50-60 Hz
– 13 kva/ FLA 38 amps
– Separate Transformer Provided for
Multiple Voltage Choices
