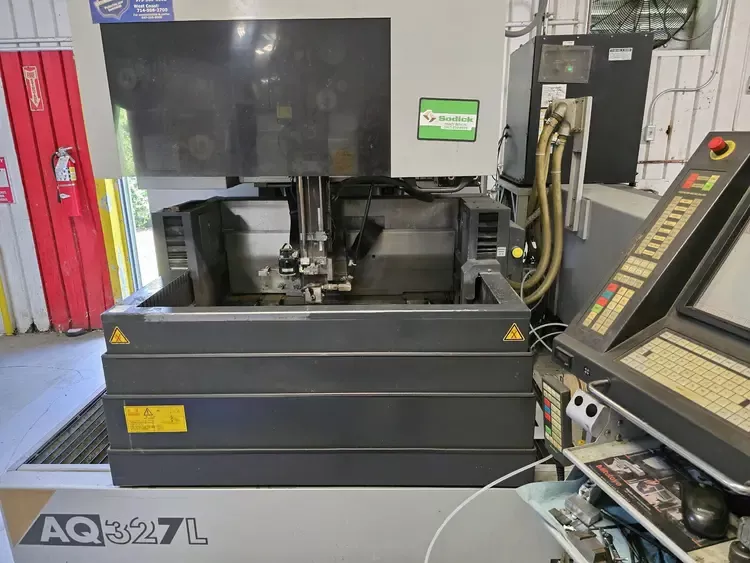

Sodick AQ327L
AMERICA North (USA-Canada-Mexico)
SODICK AQ327L
2006
5 axes
Table load capacity 1000 lb
X-axis travel 14.57 in
Y-axis travel 10.63 in
Z-axis travel 9.84 in
U-axis travel 4.72 in
V-axis travel 4.72 in
Taper capacity 25 degrees
Auto threading yes
Minimum wire diameter 0.006 in
Maximum wire diameter 0.012 in
Dielectric tank capacity 158 gal
Submerged cutting yes
Chiller included yes
Power requirement 220 VA
Transformer included yes
Shipping brackets included yes
CNC control Sodick LQ1W
Windows operating system
15" SVGA LCD monitor
Mouse included
Remote handwheel
40 amp power supply
Complete dielectric filtration system
Electric chiller with automatic temperature control
3-sided drop tank
Submersible flushing
Automatic high-speed wire threading
Auto power recovery
Original manuals included
Machine dimensions 83 in x 86 in x 84 in
Machine weight 7495 lb
Fine finish capability
