1/1

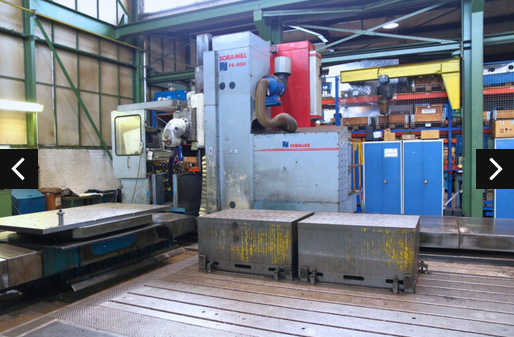

Soraluce A-60 2,000 rpm
Ref :
2784112-3-AW
Condition :
Used
Manufacturer :
Soraluce
Model :
A-60
Spindle Size :
-
Spindle Speed :
2,000 rpm
Year(s) :
1991
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
CNC Controller: Siemens Sinumerik 3.8
X-axis Travel: 6,000 mm
Y-axis Travel: 1,600 mm
Z-axis Travel: 1,000 mm
B-axis: Automatic head at 2.5º
Feed Rates: 37 m/min
Rapid Traverse: 8 m/min
Number of Pallets: 3
Table Dimensions: 6,000 x 1,000 mm
Max. Workpiece Weight: 3,000 kg
Spindle Speed: 213 – 2,000 rpm
Spindle Drive Power: 22 kW
Tool Holder: SK-50
Cooling Tank Capacity: 350 L
Cooling Pressure: 3 to 8 bar
Chip Conveyor
Mist Collector
Workarea Light
Blowing Air and Cooling Outside the Spindle
Machine Length: 10,200 mm
Machine Width: 4,700 mm
Machine Height: 3,887 mm
Machine Weight: 28,000 kg
