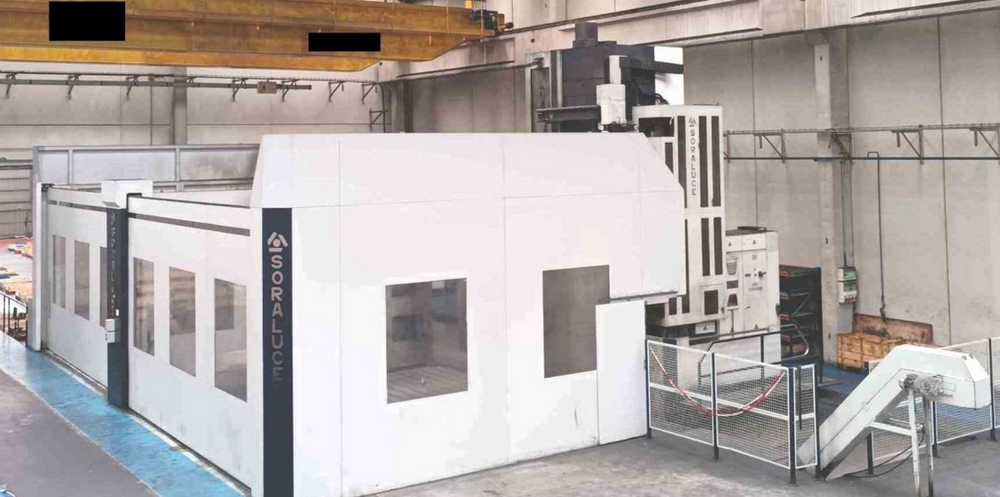

Soraluce FX 14000 195 mm 3,000 RPM

X-Axis Travel: 14,000 mm
Y-Axis Travel: 1,600 mm
Z-Axis Travel: 4,800 mm
CNC Control: Heidenhain iTNC530
Pick-up Station for 4 Milling Heads
Reinforced Milling Head with Direct Drive

Milling Head Longitudinal Travel: 480 mm
Milling Head Diameter: 195 mm
Milling Head Speed: 3,000 RPM
Milling Head Drive Power: 46 kW

Indexable Orthogonal Milling Head 1º-1º
Orthogonal Head Spindle Taper: DIN-69871-AD (BIG PLUS)
Orthogonal Head Speed Range: 4,000 RPM
Orthogonal Head Drive Power: 46 kW

Feedrate: 10,000 mm/min
Rapid Travel X/Y/Z: 25,000 mm/min
Total Power Requirement: 133 kVA
Installation Footprint: 19,880 x 12,400 x 7,350 mm
Machine Weight: 62,000 kg
Electronic Handwheel HR 420
Tool Changer M120, max. Tool Weight 30 kg, Horizontal Change
Operator Platform Max Height: 3,600 mm
Pendulum Machining 2-Station, Removable Hardware, Central Software
Tool Measurement: Heidenhain TT-140

Motorized Rotary and Tilting Table +/- 5º DEMMELER DRALT2500, 2,500 x 2,500 mm, Travel 2,000 mm, Max Table Load 60 t
Rotary Table DEMMELER DRLTS2500, 3,000 x 2,500 mm, Travel 2,000 mm, Max Table Load 60 t
Coolant Nozzles at Rotary Tables for Chip Removal
Auxiliary Button Panel for Table Movement
Plate Field: 3,500 x 2,500 x 300 mm, Max Load 15 t/m²
Internal Coolant Frequency Inverter, 30 bar with Paper Filter Tank
Full Projection Guard on Front and Both Sides of Plate Field
Documentation
CE Certification
