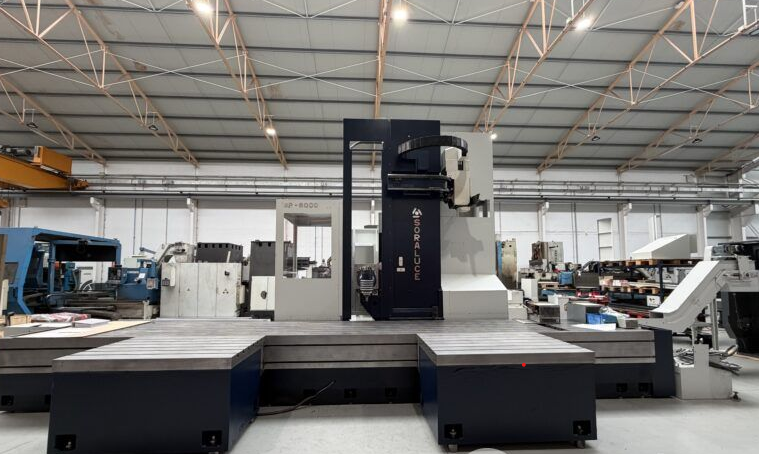

Soraluce SP-8000 4000 rpm

CNC: HEIDENHAIN iTNC 530
Table size: 10000 x 1100 mm
Max load on table: 2500 kg/m²
X-axis travel: 6500 mm
Y-axis travel: 1500 mm
Z-axis travel: 2000 mm
Rapid traverse: 25000 mm/min
Automatic head swivel: 2.5° / 2.5°
Spindle taper: ISO 50 DIN 69871
Spindle speed range: 20 – 4000 rpm
Speed stages: 2
Main motor power: 30 kW
ATC tool positions: 60
Max tool diameter (no adjacent free pockets): 125 mm
Max tool diameter (with free adjacent pockets): 250 mm
Max tool length: 400 mm
Max tool weight: 20 kg
Internal coolant pressure: 20 bar
Chip conveyor: Included
Portable handwheel: Heidenhain HR-410
Paper filter auxiliary tank: Included
Operator platform: Included
Motor drives: SIEMENS DIGITAL
Total power required: 63 kVA
Machine weight: 34400 kg
Machine dimensions (L x W x H): 11275 x 4840 x 4130 mm
