1/1

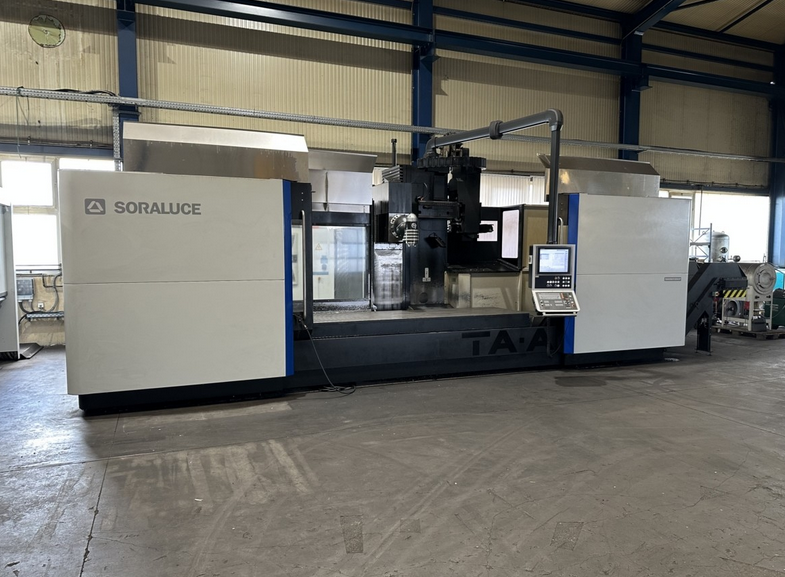

Soraluce TA-A 35 4,000 rpm
Ref :
2767283-3-GO
Condition :
Used
Manufacturer :
Soraluce
Model :
TA-A 35
Spindle Speed :
4,000 rpm
Year(s) :
2021
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
X-axis travel: 3,500 mm
Y-axis travel: 1,200 mm
Z-axis travel: 1,500 mm
Control: Heidenhain TNC 640
Spindle speed: 4,000 rpm
Spindle motor power: 37 kW
Maximum torque: 644 Nm
Indexing: 2.5°
Working area: 3,700 × 1,000 mm
Maximum table load: 9,000 kg
Maximum tool diameter: 125 mm
Maximum tool diameter with adjacent free station: 250 mm
Maximum tool length: 400 mm
Features / equipment
CNC control
Gear-driven spindle
Spindle taper SK 50
Diagonal milling head
Chain-type tool magazine
Double-gripper tool changer
40 tool stations
Direct position measuring systems on all axes
Chip conveyor
Internal coolant supply 20 bar
Renishaw workpiece measuring probe
Electronic handwheel
Adaptive control software option
