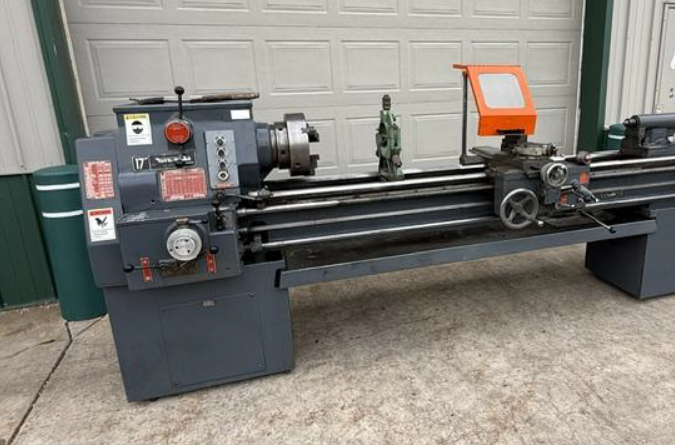

South Bend Engine Lathe 1,580 RPM (9 Speeds) 17" TURN-NADO

Ref : 2806185-3-GO

Condition : Used

Manufacturer : South Bend

Type : Engine Lathe

Spindle Speed : 1,580 RPM (9 Speeds)

Model : 17" TURN-NADO

Year(s) : -

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

Swing Over Bed Ways: 17.125"
Swing Over Cross Slide: 10.5"
Distance Between Centers: 80.0"
Spindle Bore: 2.562"
Spindle Nose: D1-8
Spindle Motor: 7.5/3.75 HP
Spindle Speed: 60–1,580 RPM (9 Speeds)
Tailstock Taper: 4 MT
Voltage: 460V / 3 Phase / 60 Hz
12" 3-Jaw Chuck
12" 4-Jaw Chuck
Front Handwheel Collet Chuck
12.5" Face Plate
15" Face Plate
Micro Bed Stop
Steady Rest
Chuck Guard
2 Live Centers
Machine Weight: 3,800 lbs
