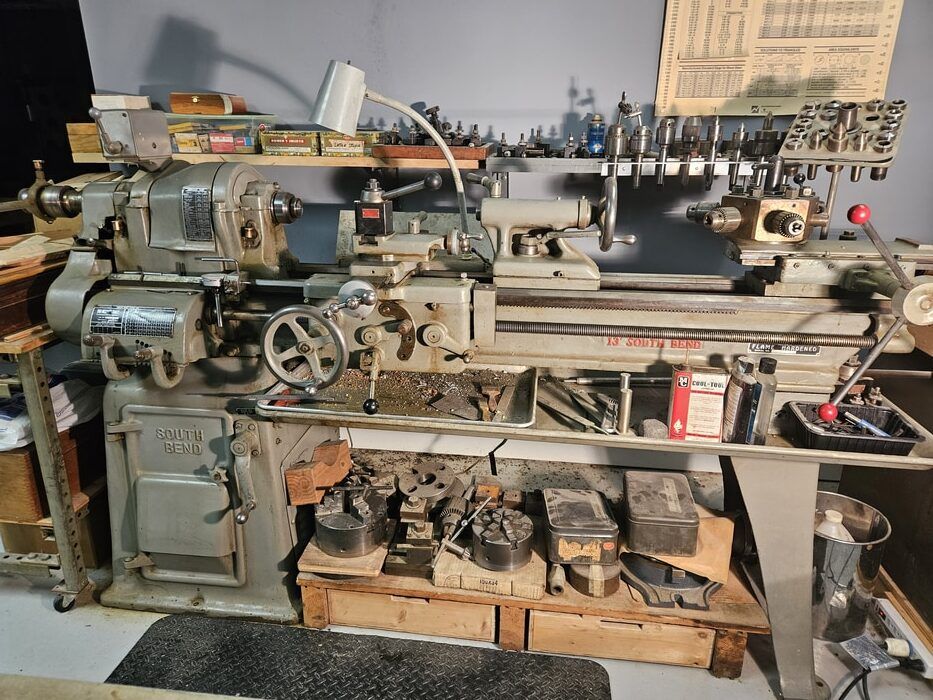

South Bend Toolroom Lathe 940 RPM (8 Steps) CL8145C 13” x 39”

Swing Over Bedways 13-1/8”
Swing Over Cross Slide 8”
Distance Between Centers 39”
Spindle Bore 1-3/8”
Spindle Nose Threaded 2-1/4-8
Steps on Spindle Cone Pulley 4
Spindle Speeds 40 to 940 RPM (8 Steps)
Cross Slide Travel 8-1/4”
Compound Rest Travel 3-1/8”
Thread Range 4 to 224 TPI (48 options)
Longitudinal Feed Range 0.0015 to 0.01841 IPR
Cross Feed Range 0.0006 to 0.0315 IPR
Lead Screw Diameter & Threads 1” – 6 TPI
Tailstock Center Taper #3 MT
Tailstock Quill Travel 4-1/4”
Tailstock Set Over 15/16”

3-Jaw Universal Chuck
4-Jaw Independent Chuck
6-Jaw Universal Chuck
Face Plate
Aloris Quick Change Toolpost with Assorted Holders
Micrometer Carriage Stop
Taper Attachment
Steady Rest
Follower Rest
5C Lever Type Collet Closer with Assorted 5C Collets
5C Collet Rack Mount
6-Position Bed Turret with Holders, Drill Chucks, Die Head & Misc. Tooling
Motor and Controls 2 HP 1/60/220 Single Phase
