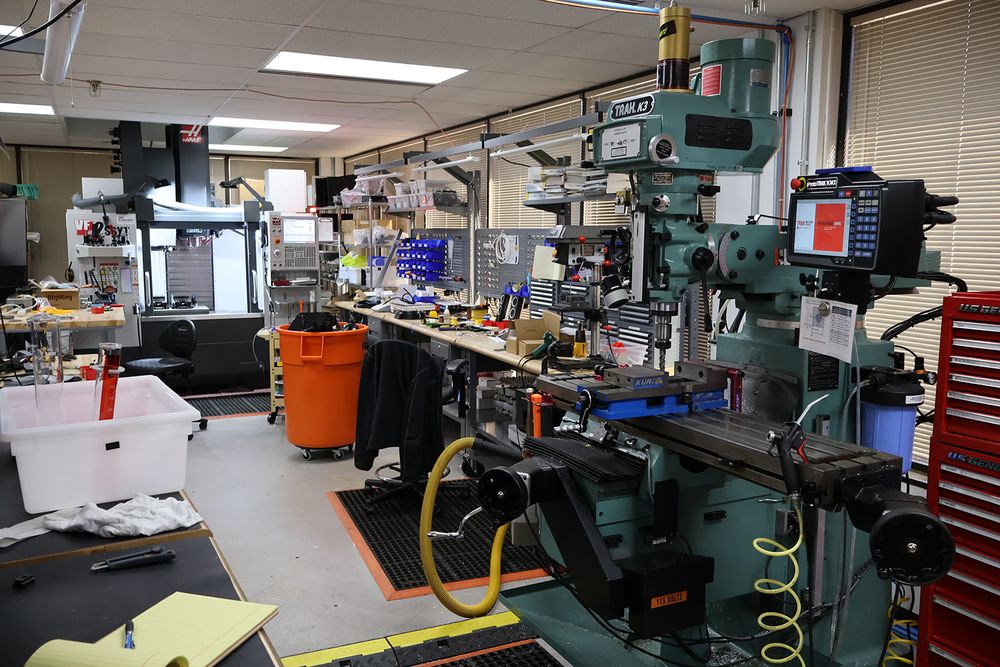

SouthWestern IND. K3 PROTO-TRAK KMX Vertical 4200 rpm

Longitudinal (X) travel 32"
Cross (Y) travel 16"
Vertical knee travel 16"
Quill (Z) travel 5"
Quill diameter 3.375"
Maximum table load 850 lbs
Ram travel 24"
Head tilt left and right 90°
Head tilt front to rear 45° each way
Power quill feeds .0015 IPR
Power quill feeds .003 IPR
Power quill feeds .006 IPR
Spindle speed range 60–500 rpm
Spindle speed range 500–4200 rpm
Spindle taper R-8
Maximum rapid feed rate 100 ipm
Approximate dimensions 78" L-R x 103" F-B x 87" H
Approximate weight 2850 lbs
Drive motor 3 HP

Manual or CNC mode of operation
ProtoTrak KMX 2 two-axis control with LCD screen
Four USB connectors
Precision ball screws on X and Y
Servo drives on X and Y
Glass scales on table
Glass scales on saddle
Glass scales on quill
Electronic handwheels
Torque-Rite pneumatically actuated power drawbar
R-8 collets
Meehanite casting
Hardened and ground ways
Turcite-coated slide ways
Power feed for raising and lowering knee
Coolant system
Fog Buster spray coolant system
Coolant pan
Automatic lubrication system
