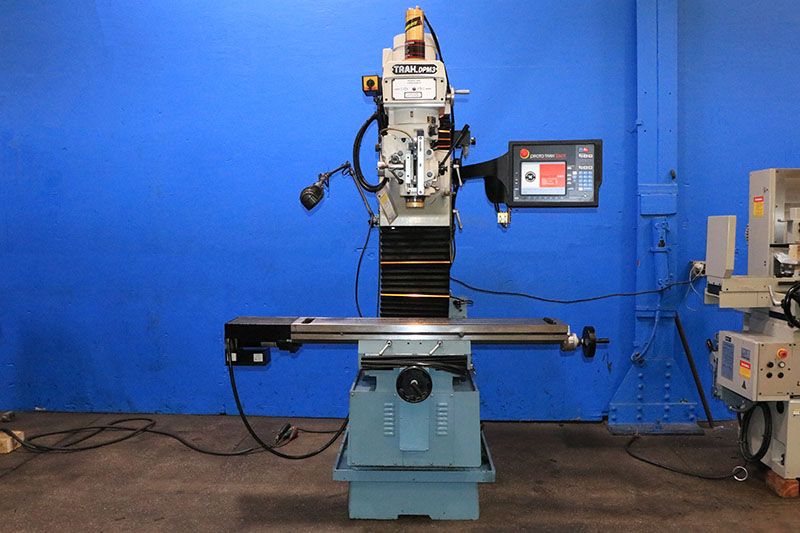

Southwestern Industries DPM S3 Vertical 3950 rpm

Table size: 10" x 50"
X travel: 31"
Y travel: 17"
Z travel (vertical head): 23.5"
Quill travel: 5"
Spindle taper: #40 NST
Spindle nose to table: 0–24"
Spindle center to column face: 17.3"
Head swivel left/right: 90°
Spindle speed range: 70–3950 rpm
Quill feeds: .002 / .004 / .006 ipr
Maximum workpiece weight: 1320 lbs
Approx dimensions: 68" W x 64" D x 95" H
Machine weight: 4100 lbs

Machine Equipped With
ProtoTRAK SMX three-axis control
Three-axis simultaneous interpolation
Helical cycles
Canned cycles
Graphics
Three-axis DRO manual mode
Ethernet card
RS232 port
Advanced features
Network options
Quill digital readout
Square box ways hardened and ground
Precision ball screws
Torque-Rite power drawbar
Coolant system
Automatic lubrication system
Bellows way covers
5 hp spindle motor
