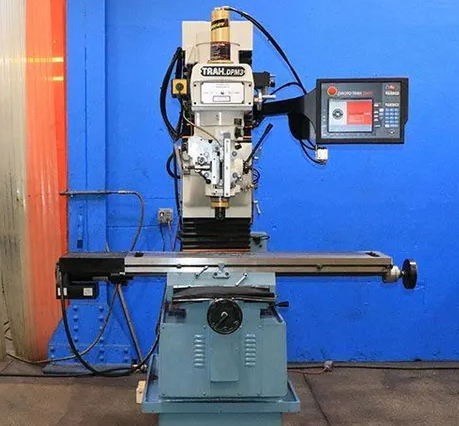

Southwestern Industries TRAK DPM SX3 Vertical 3950 RPM

Table Size 10" x 50"
X-Axis Travel 31"
Y-Axis Travel 17"
Z-Axis Travel 23.5"
Quill Travel 5"
Spindle Taper #40 NST
Spindle Nose to Table 0 - 24"
Spindle Center to Column Face 19"
Head Swivel Left & Right 90 Degrees
Spindle Speed Range 70 - 3950 RPM
Quill Feeds .002 IPR
Quill Feeds .004 IPR
Quill Feeds .006 IPR
Maximum Workpiece Weight 1,320 lbs
Approximate Dimensions 68"W x 64"D x 95"H
Machine Weight 4,100 lbs
Proto-Trak SMX Three Axis Control
Three-Axis Simultaneous Interpolation
Helical Interpolation
Canned Cycles
Graphics Display
3-Axis DRO in Manual Mode
RS232 Port
Advanced Features Option
Quill Digital Readout
Remote Stop/Go Switch
Square Box Ways Hardened & Ground
Precision Ball Screws
Halogen Worklight
Torque-Rite Power Draw Bar
Coolant System
Automatic Lubrication System
Bellows Way Covers
5 HP Spindle Motor
