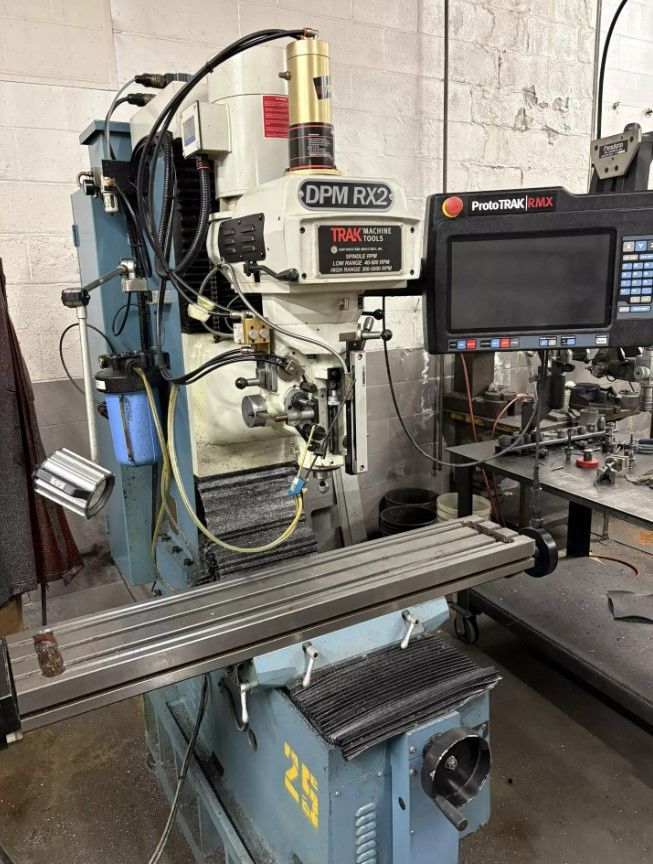

Southwestern Industries DPM RX2 Vertical 5,000 rpm

X-axis travel: 31.75 in
Y-axis travel: 16 in
Z-axis travel: 25.5 in
3 axes
Control: ProtoTRAK RMX CNC
3-axis simultaneous interpolation
Helical interpolation
Canned cycles
Graphics
3-axis DRO
15.6 in touchscreen LCD
Programmable spindle speed
Quill digital readout
Coolant system
Automatic lubrication system
Programmable spindle speed: 40–5,000 rpm
Spindle taper: R-8
Spindle motor: 3 hp
Spindle nose to table: 0–25.5 in
Spindle center to column face: 18.5 in
Quill travel: 5 in
Quill feeds: 0.002 / 0.004 / 0.006 IPR
Table size: 9 × 49 in
Maximum workpiece weight: 1,320 lb
Torque-Rite air actuated power drawbar
Hardened and ground ways
Precision ball screws
Bellows way covers
Head swivel: ±90°
Machine dimensions: 71.25 × 64 × 91.75 in
Machine weight: 3,500 lb
