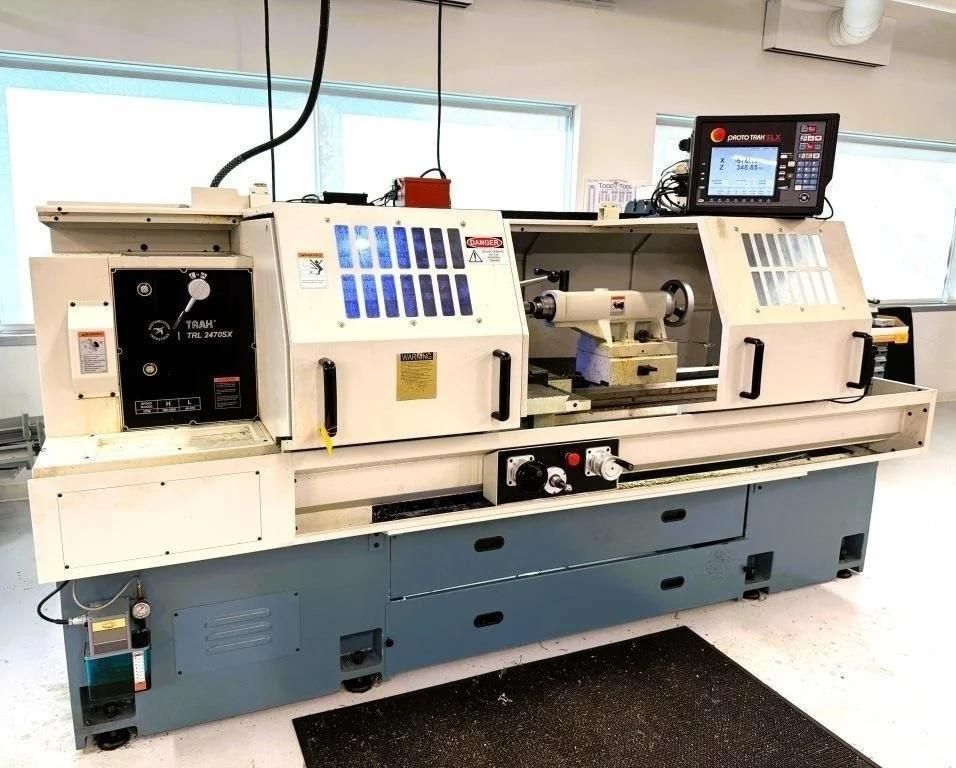

Southwestern Industries Prototrak SLX CNC Control 1800 RPM Trak TRL 2470SX 2 Axis

Height of centers: 12”
Distance between centers: 70”
Swing over bed: 24”
Swing over saddle wings: 24”
Swing over cross slide: 14.5”
Cross slide travel: 12.5”
Tool section max: 1”
Coolant capacity: 15 gal.
Bed width: 14.57”
Bed height: 15”
Spindle nose: D1-8
Spindle through hole: 4.09”
Spindle taper: MT #8
Taper in reduction sleeve: MT #5
Spindle diameter front bearing: 5.51”
Number of bearings: 2
Bearing class (radial runout): Normal
Number of spindle speed ranges: 2
Spindle speed range: 40–670, 100–1800 RPM
Spindle horsepower: 15 HP
Voltage: 220 V
Amps/full load: 42
Control voltage: 110 V/1P/12A
Machine voltage: 220 V/3P/60 Hz
Net dimensions LxWxH: 129 x 60 x 77”
Shipping dimensions LxWxH: 134 x 64 x 77”
Net weight: 6500 lbs
Shipping weight: 6900 lbs
Tailstock quill travel: 8.5”
Quill diameter: 3.5”
Quill taper hole: MT #5
Coolant pump motor: 1/8 HP
Dynamic spindle motor brake
Way surface hardness: 480–560 HB
Direct drive headstock: no gear shifting
Quiet operation
Dual sliding doors for chip and coolant control
Meehanite cast monolithic base
Heavy ribbed base construction
Bedways hardened and ground
Sliding surfaces Turcite coated
Dovetails on cross slide, V-ways on saddle
Adjustable saddle gibs
Maximum rapid traverse: 250 ipm
Prototrak SLX CNC Control
Tool post
Dorian Smart Dex 25N Power Turret
12" BTC 3 Jaw Chuck (D1-8)
Collet closure
