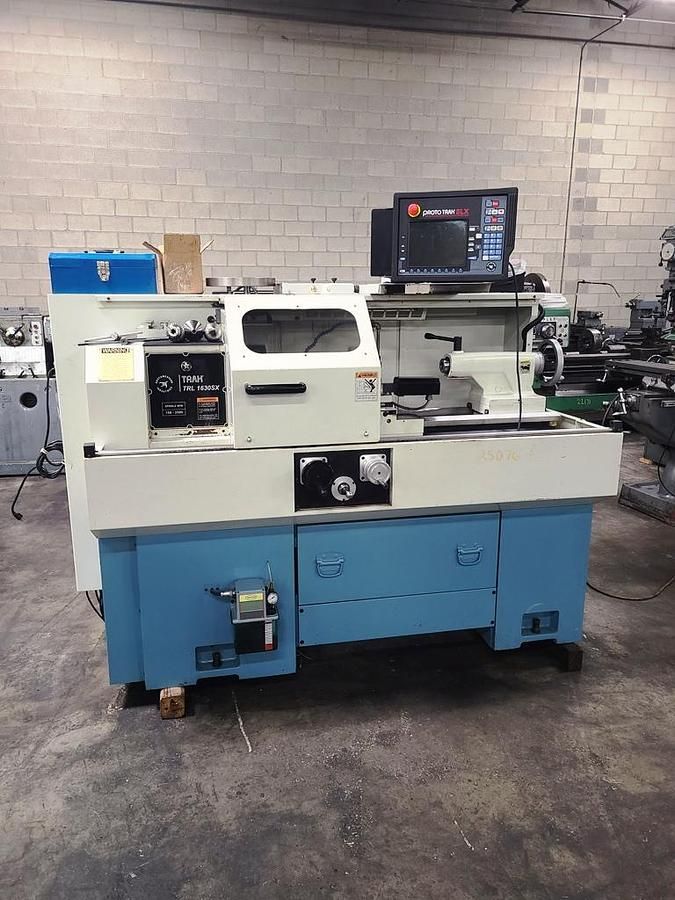

Southwestern Industries Southwestern Industries-Prototrak, Model SLX CNC 2500 RPM TRAK 1630SX 2 Axis

Height of Centers: 8"
Swing Over Bed: 16"
Swing Over Cross Slide: 8.6"
Swing Over Saddle Wings: 16"
Max. Distance Between Centers: 30"
Cross Slide Travel (X): 8.6"
Longitudinal Travel (Z): 30"
Spindle Taper, Camlock, Size: A2-4
Spindle Speed Range, Infinitely Variable: 150 to 2500 RPM
Spindle Bore: 1.57"
Taper in Headstock Spindle: #5 MT
Tailstock Quill Travel: 6.3"
Tailstock Quill Diameter: 2.36"
Tailstock Quill Taper Hole: #5 MT
Control: Southwestern Industries-Prototrak, Model SLX CNC
Tool Post: 4-Position Programmable Square Tool Post
Chuck: 8" BTC 3 Jaw Chuck
Feature: Follower Rest
Feature: 12" Face Plate
Feature: Manuals
Feature: Back Slide Tool Post Holder
Feature: 2-Axis Digital Readout During Manual Operation
Feature: Constant Surface Speed & Programmable Spindle Speeds
Feature: Servo Motors & Ground Ballscrews
Feature: AC Spindle Drive
Feature: Electronic Handwheels for X & Z Manual Traverse
Feature: Jogstick for Rapid Travels
Feature: Unlimited Number of Thread Pitches & Up to 10 Leads
Feature: Hardened & Ground Bed Ways
Feature: Automatic Central Lubrication System for the Slide Ways & Ballscrews
Feature: Coolant System
Feature: Enclosure
Spindle Drive Motor: 7.5 HP, 3/60/230 Volt
Approx. Dimensions: 82" x 46" x 67"
Approx. Weight: 2,500 Lbs.
