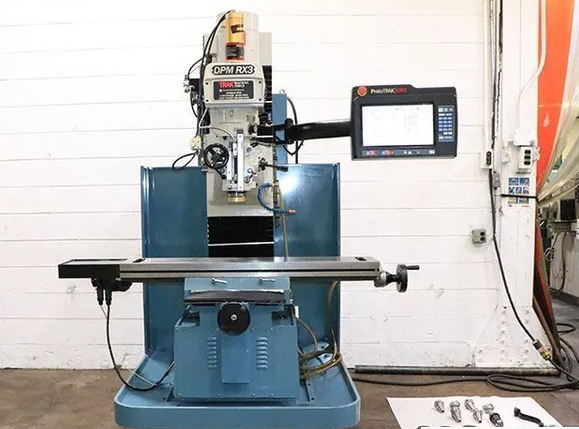

Southwestern Industries TRAK DPM RX3 Vertical 5,000 RPM

X-Axis travel: 31.75"
Y-Axis travel: 17"
Z-Axis travel: 25.81"
Quill travel: 5"
Table size: 50" x 10"
Spindle nose to table: 0 - 25.81"
Spindle center to column face: 20.5"
Head swivel left & right: 90°
Spindle speed range: 40 - 5,000 RPM
Maximum workpiece weight: 1,320 LBS
Machine dimensions: 73.5"W x 76"D x 100.5"H
Machine weight: 4,100 LBS

ProtoTrak RMX three-axis control
Three-axis simultaneous interpolation including helical, canned cycles, graphics
Manual mode three-axis digital readout
15.6" touchscreen control
Quill digital readout (Z is head up & down)
Electronic head for programming spindle speeds & tapping
Square box ways, hardened & ground
Precision ball screws
Worklight
Torque-Rite power drawbar
Coolant system
Automatic lubrication system
Bellows way covers
5 HP spindle motor
Cat-40 power drawbar
Transition freely from 3-axis CNC to manual
