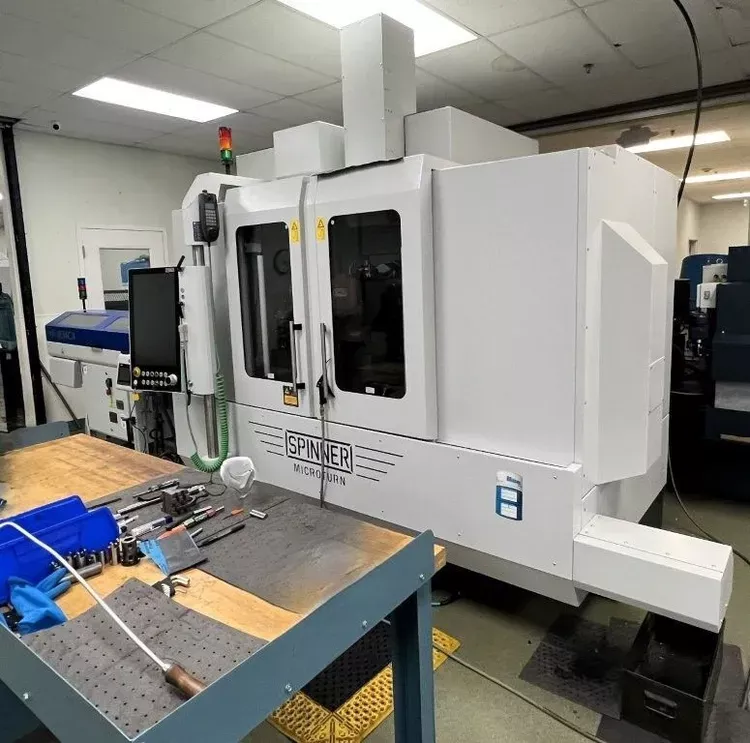

Spinner CNC control Siemens 840D 5200 rpm MICROTURN 52 LTBS 6 Axis

X-axis travel 23.6 in
Z-axis travel 13.8 in
Y1-axis travel ±1.9 in
Y2-axis travel ±1.9 in
B-axis rotation ±180°
C-axis on main spindle
C-axis on sub spindle

CNC control Siemens 840D
Touch control panel 24 in
Tool probe Renishaw
High-pressure coolant system 319 psi
Chip conveyor rear discharge
Automatic operator door
Robot interface preparation
Swing diameter 23.9 in

Maximum turning diameter 5.9 in
Maximum turning length 9.8 in
Main spindle bore 52 mm
Main spindle speed 5200 rpm
Main spindle power 22.1 hp
Main spindle torque 81.1 ft-lb
Spindle nose DIN A6
Sub spindle speed 5200 rpm

B-axis milling spindle speed 12000 rpm
B-axis milling spindle power 12 hp
B-axis milling spindle torque 15.4 ft-lb

Turret stations 12
Turret interface BMT45
Live tooling speed 8000 rpm
Tool magazine capacity 72
Tool holder type HSK40

Rapid traverse X-axis 944.8 ipm
Rapid traverse Y-axis 590.6 ipm
Rapid traverse Z-axis 944.8 ipm

Machine length 119.3 in
Machine width 111.8 in
Machine height 113.8 in
Machine weight 16976 lb
