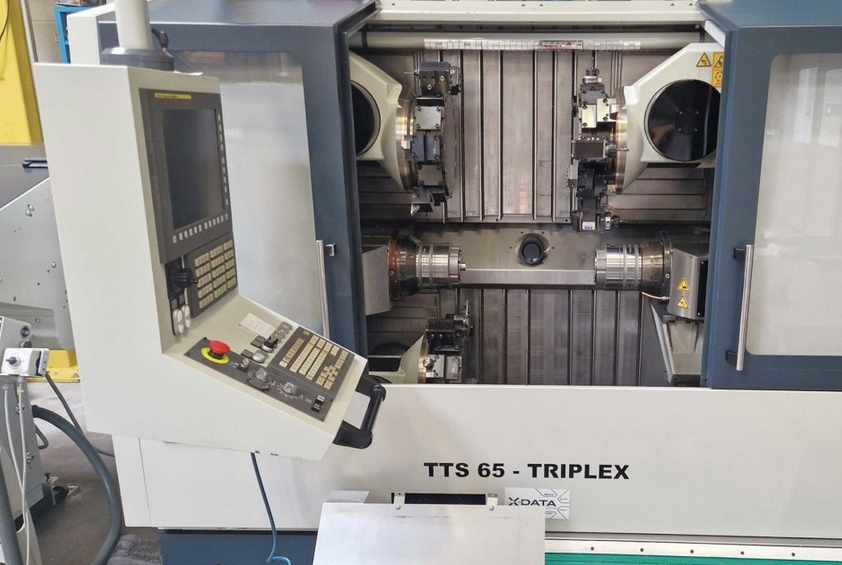

Spinner FANUC Series 31i-Model A 5000 rpm TTS 65 Triplex 3 Axis

X-axis travel: 180 mm
Y-axis travel: ±45 mm
C-axis main spindle
C-axis sub spindle
Control: FANUC Series 31i-Model A
Turning diameter: 250 mm
Turning length: 600 mm
Main spindle speed: 0–5000 rpm
Main spindle bar capacity: 65 mm
Sub spindle speed: 0–7000 rpm
Sub spindle bar capacity: 42 mm
Tool positions turret 1: 12
Tool taper turret 1: BMT 45
Driven tool speed turret 1: 8000 rpm
Tool positions turret 2: 12
Tool taper turret 2: BMT 45
Driven tool speed turret 2: 8000 rpm
Tool positions turret 3: 12
Tool taper turret 3: BMT 45
Driven tool speed turret 3: 8000 rpm

Bar feeder Top Automazioni X-Files-S Series 3000
Triplex turret configuration
Driven tools on all turrets
Main spindle
Sub spindle
