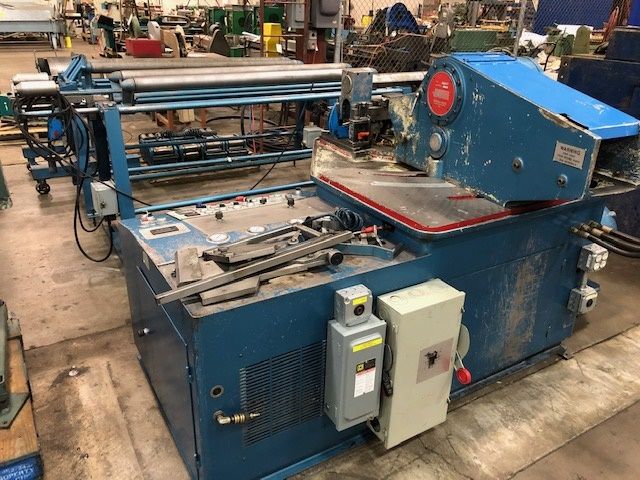

Helix, Spiral 200-H Spiral Duct Automatic Tubeforming Machine
AMERICA North (USA-Canada-Mexico)
14 Ga Spiral-Helix Model 200-H Spiral Duct
Spiral Duct - Automatic Tubeforming Machine
Diameter Range 3""-100""
Maximum Strip Speed 255 FPM
Maximum Thickness 14 gauge (0.0730"")
Drive System Single
Electrics 440V/3-Ph
Additional Information:
Includes (2) 10' Run-off Tables w/ receiving ramps & automatic discharge mechanism for cut tubes up to 20' length.
Form Roll Unit No. 1A for 30-26 ga. (0.0150"" to 0.0217""),
Form Roll Unit No. 2 for 26-24 ga. (0.0218"" to 0.0320""),
Form Roll Unit No. 3 for 22-20 ga. (0.0321"" to 0.0400""),
Form Roll Unit No. 4 for 20-18 ga. (0.0401"" to 0.0516""),
Form Roll Unit No. 5 for 18-16 ga. (0.0517"" to 0.0650""),
Form Roll Unit No. 6 for 16-14 ga. (0.0651"" to 0.0730""),
Vertical Decoiler for 19"" I.D. Coil (maximum 2,000 lbs. capacity),
