Stamtec G1-45 Press 50 US TONS

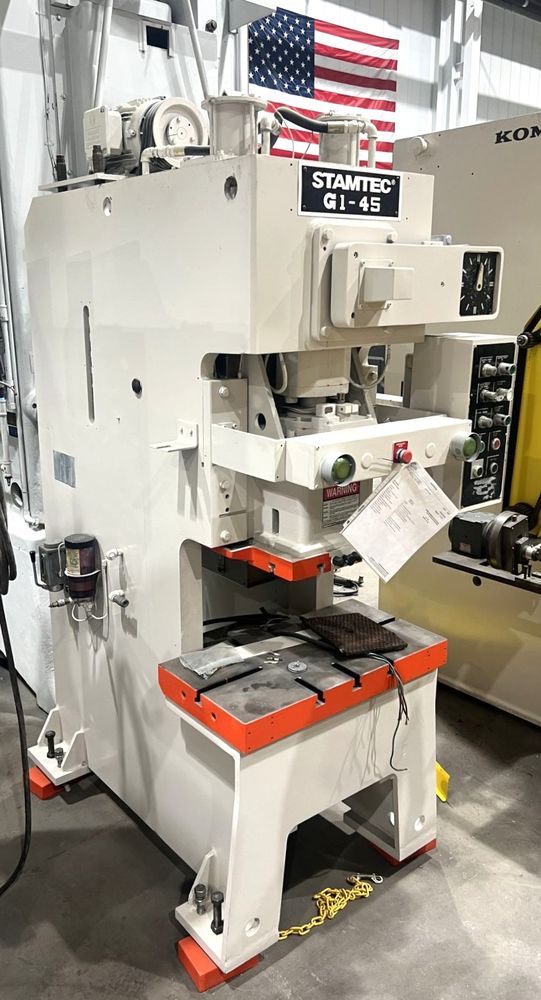

Stamtec G1-45 Press
Year: 2000

CAPACITY 50 US TONS
STROKE 3.15″
MAX. SHUT HEIGHT TO BED 9.45″ OVER BOLSTER PLATE
BED AREA 33.47″ X 17.32″ (RL X FB)
BOLSTER PLATE 33.47″ X 17.32″ (RL X FB) X APPROX. 3″ THICK
RAM / SLIDE AREA 15.75″ X 11.81″ (RL X FB)
RAM / SLIDE ADJUSTMENT 2.36″ MOTORIZED ADJUSTMENT
SPEED 40-100 STROKES PER MINUTE
DISTANCE BETWEEN UPRIGHTS 20″
FLOOR TO BED HEIGHT 31″
THROAT DEPTH 9″
AIR CLUTCH STAMTEC AIR CLUTCH & BRAKE
PRESS CONTROLS OMRON RELAY LOGIC CONTROLS
ELECTRIC MOTOR 7.5 HP 1750 rpm MOTOR
APPROX. DIMENSIONS 44″ x 69″ (LR X FB) x 106″ HIGH
APPROX. WEIGHT 8,200 LBS.
