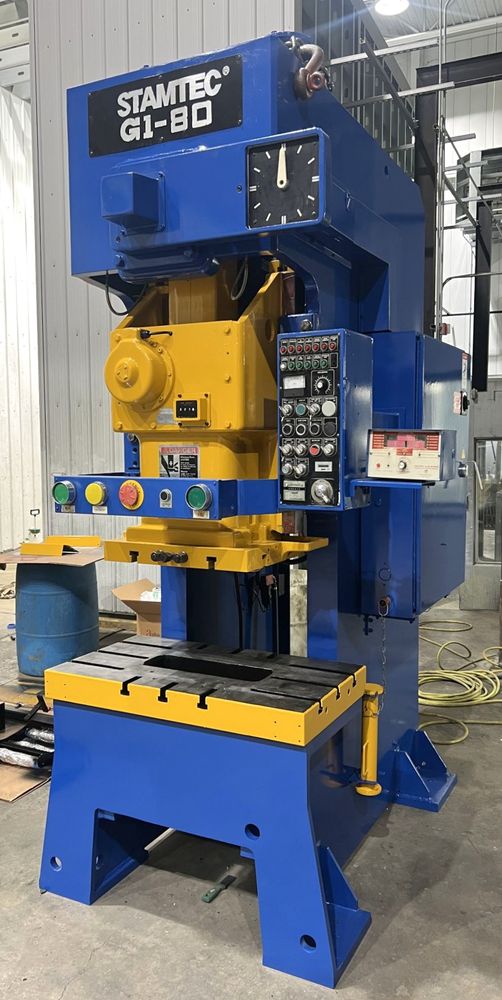

Stamtec G1-80 88 ton

Press force: 88 ton
Stroke: 2.76 in
Maximum die height: 14.57 in
Total shut height: 18.57 in
Bed area: 39.4 in x 21.7 in
Speed: 80–120 spm
Slide adjustment: 3.15 in motorized
Slide area: 22.05 in x 16.54 in
Bolster plate: 39.37 in x 21.65 in x 4 in
Distance between uprights: 21 in
Distance floor to bed: 29 in
Clutch: air clutch / brake combination
Press controls: dual Micro830 controllers
Electric motor: 10 hp 240/480V-3-60 eddy current drive
Approximate dimensions: 60 in x 75 in x 125 in
Approximate weight: 15,500 lb

FEATURES
Hydraulic overload protection
Low deflection
Rigid steel frame
Long 6-point centered gibs
Removable bolster plate
Removable slide plate
Automatic lubrication system
Dual air counterbalances
Single back geared design
Floor standing
