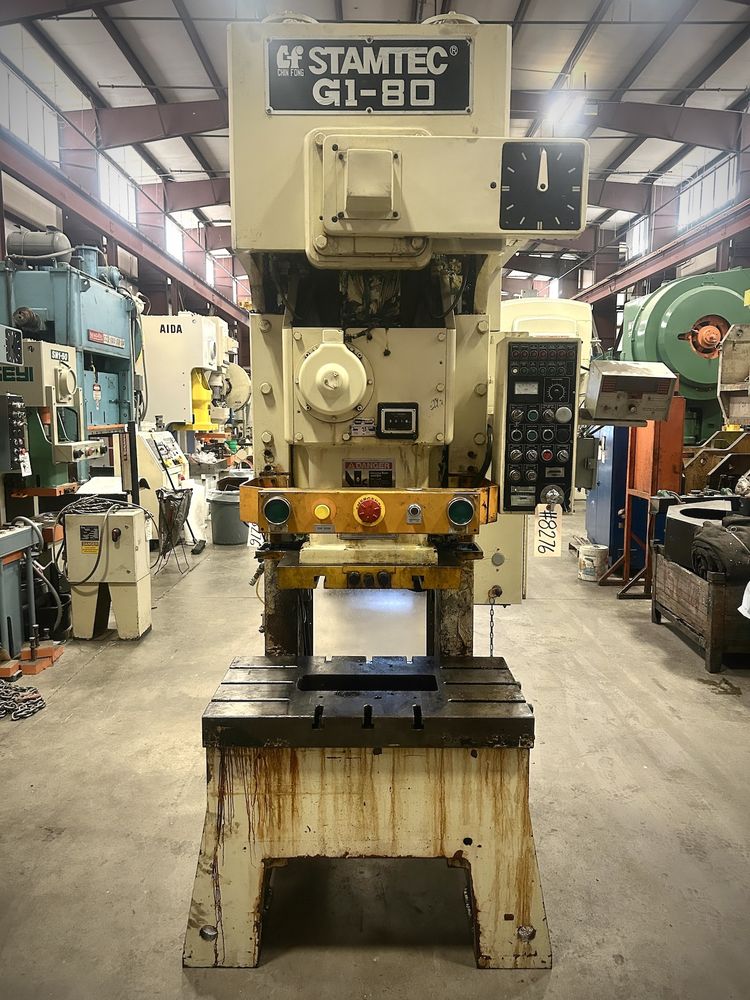

Stamtec G1-80 88 US ton

Capacity: 88 US ton
Stroke: 2.8"
Max die height: 14.6" SDAU over 4" bolster
Bed area: 39.4" × 21.7"
Speed: 80–120 spm
Slide adjustment: 3.2" motorized
Slide area: 22.1" × 16.5"
Bolster plate: 4" × 39.4" × 21.7"
Distance between uprights: 21"
Distance floor to bed: 29"
Clutch: Stamtec air clutch / brake combination
Electrics: 10 HP 1750 rpm 240/480V-3-60 eddy current drive & Stamtec press control
Approx dimensions: 125" H × 60" RL × 75" FB
Approx weight: 15,500 lbs

Hydraulic overload protection
Low deflection
Super rigid steel frame
Extra long 6-point centered gibs
Removable bolster plate
Removable slide plate
Automatic lubrication system
Dual air counterbalances
Single back-geared design
Floor standing
