Stamtec OCP-45 Press 50 US TON

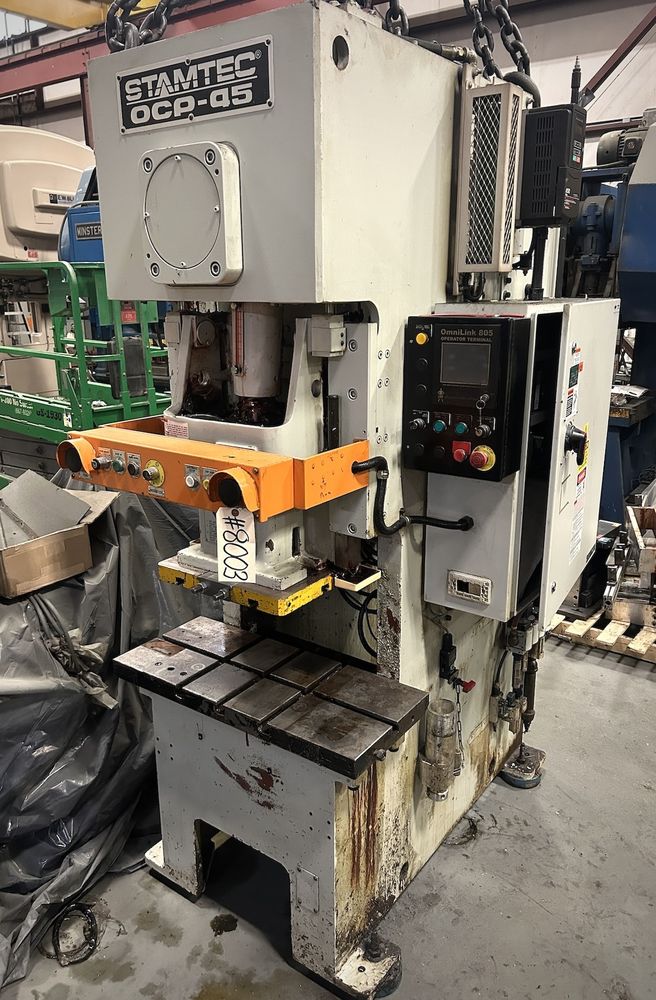

Stamtec OCP-45 Press
Year: 2014

CAPACITY 50 US TON
STROKE 3.2″
MAX DIE HEIGHT 9.9″ sdau over 3.5″ h bolster
BED AREA 33.5″ x 14.2″ (rl x fb)
SPEED 65 – 130 spm
SLIDE ADJUSTMENT 2.4″ (motorized)
SLIDE AREA 16.9″ rl x 13.8″ fb (t-slot)
BOLSTER PLATE 3.5″ h x 33.5″ rl x 14.2″ fb (t-slot)
DISTANCE BETWEEN UPRIGHTS 19.8″
DISTANCE FLOOR TO BED 28″

CLUTCH stamtec HIGH PERFORMANCE WET CLUTCH / BRAKE
ELECTRICS 5 hp 1750 rpm 240/480v-3-60 MOTOR w/teco a510 480v vfd, resistor bank, & LINK 5100 PRESS CONTROL
APPROX DIMENSIONS 100″ h x 48″ rl x 60″ fb
APPROX WEIGHT 7,300 lbs

Equipped With
HYDRAULIC OVERLOAD PROTECTION, LOW DEFLECTION
SUPER RIGID STEEL FRAME, EXTRA LONG 6 PT CENTERED GIBS
REMOVABLE BOLSTER & SLIDE PLATE
AUTOMATIC LUBRICATION SYSTEM
SINGLE BACK GEARED DESIGN, FLOOR STANDING
